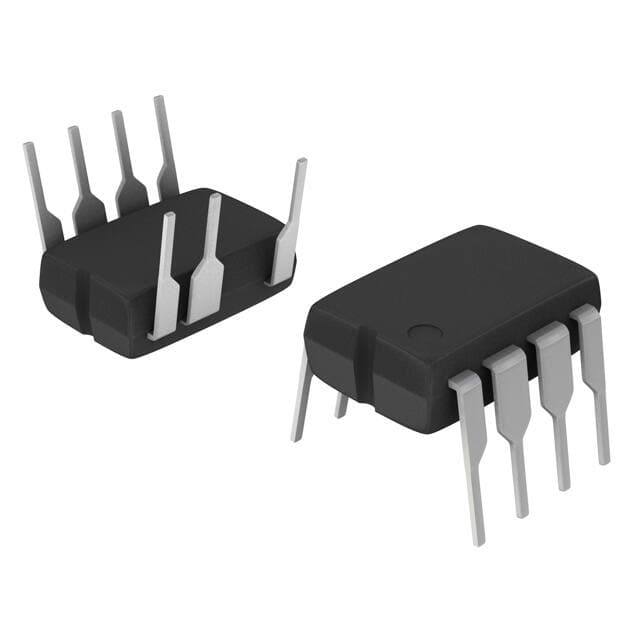

ONSEMI NCP1013AP133
Manufacturer No:
NCP1013AP133
Manufacturer:
Package:
8-DIP (0.300, 7.62mm), 7 Leads
Description:
7 Terminations 8.5V~10V 7 Pin NCP1013 AC to DC power converter 130kHz
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NCP1013AP133 information
ONSEMI NCP1013AP133 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1013AP133.
- Type
- Parameter
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 8-DIP (0.300, 7.62mm), 7 Leads
- Number of Pins
- 7
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tube
- Published
- 2006
- JESD-609 Code
- e0
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 7
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn/Pb)
- HTS Code
- 8542.39.00.01
- Subcategory
- Switching Regulator or Controllers
- Max Power Dissipation
- 19W
- Terminal Position
- DUAL
- Number of Functions
- 1
- Terminal Pitch
- 2.54mm
- Base Part Number
- NCP1013
- Pin Count
- 8
- Operating Supply Voltage
- 10V
- Input Voltage-Nom
- 8V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Topology
- Flyback
- Control Mode
- CURRENT-MODE
- Output Current-Max
- 1A
- Frequency - Switching
- 130kHz
- Control Technique
- PULSE WIDTH MODULATION
- Switcher Configuration
- SINGLE
- Internal Switch(s)
- Yes
- Fault Protection
- Over Load, Over Temperature, Over Voltage
- Max Duty Cycle
- 72 %
- Duty Cycle
- 67%
- Output Isolation
- Isolated
- Voltage - Breakdown
- 700V
- Height Seated (Max)
- 4.45mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ONSEMI NCP1013AP133.
ReachStatement:
NCP1013AP133 Overview
A ac to dc converter of the package 8-DIP (0.300, 7.62mm), 7 Leads contains the ac to dc converter.In Tube case, the ac dc converter is available.There is a mounting point for this AC/DC converter in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.SWITCHING REGULATOR analog ICs are employed in this AC DC converter.Switching frequency reaches 130kHz Hz.This AC/DC converter is suitable for operation in the range of 8.5V~10V supply voltage (Vcc/Vdd).In total, it has 7 terminations.There are 7 pins on this ac/dc converter.Up to 8 pins are present on the ac-dc converter.Through Hole is the recommended mounting method for the ac dc converters.Search similar acdc converters based on NCP1013 family members.The ac to dc conversions are contained in Switching Regulator or Controllers .An amount of current of 1A can be supplied to the ac to dc inverter.An interface IC conducts when its supply voltage is 10V .
NCP1013AP133 Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 130kHz
With 7 pins
Operating Supply Voltage at the range of 10V
NCP1013AP133 Applications
There are a lot of ON Semiconductor
NCP1013AP133 AC DC Converters applications.
- Records
- Linear Adapter Replacements
- Chargers for cell/cordless phones
- PDAs
- MP3
- Portable audio
- Adapters
- Networking
- Battery Chargers
- Power Adaptors
