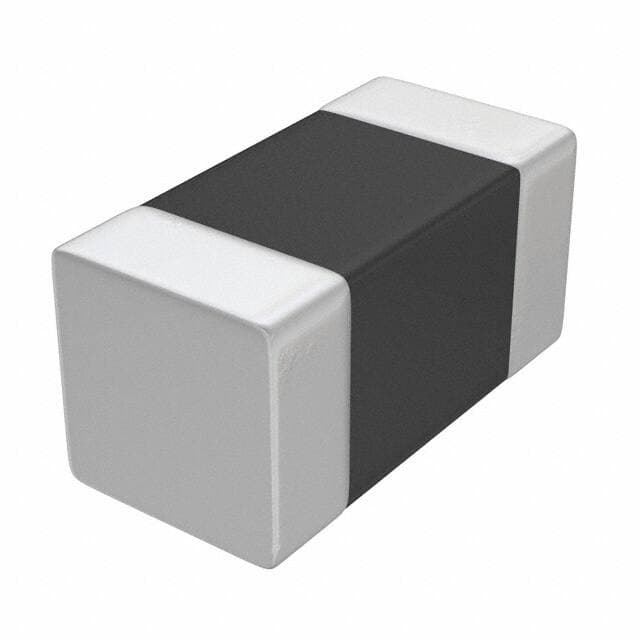

MURATA NCP03WL683J05RL

Manufacturer No:

NCP03WL683J05RL

Manufacturer:

MURATA

Package:

0201 (0603 Metric)

Description:

NCP03 Series NTC THERMISTOR Tolerance:5% 68k Surface Mount -40°C~125°C 4543K B Value Tolerance:±1% Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP03WL683J05RL information

MURATA NCP03WL683J05RL technical specifications, attributes, parameters and parts with similar specifications to MURATA NCP03WL683J05RL.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
0201 (0603 Metric)

Terminal Shape
WRAPAROUND

Number of Pins
2

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
NCP03

Tolerance
5%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Resistance
68kOhm

Terminal Finish
Tin (Sn)

HTS Code
8533.40.80.70

Power Rating
100mW

Packing Method
TAPE, PAPER

Max Power Dissipation
100mW

Resistor Type
NTC THERMISTOR

Rated Power Dissipation (P)
0.1W

Terminal Placement
DUAL ENDED

Accuracy
1 %

Resistance Tolerance
±5%

Thermistor Application
TEMPERATURE COMPENSATION

Resistance in ? @ 25°C
68k

B Value Tolerance
±1%

B25/85
4543K

Thermal Sensitivity Index
4485 K

B25/50
4485K

B25/100
4557K

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MURATA NCP03WL683J05RL.

Datasheets:

murataelectronics-ncp03wl154j05rl-datasheets-9613.pdf

ReachStatement:

murata-gcm2165c1h271ga16j-reachstatement-6228.pdf

NCP03WL683J05RL Overview

An NTC thermistor is packaged in the form of a Tape & Reel (TR). 0201 (0603 Metric) includes it as a convenience. To ensure that the NTC thermistors function properly, the resistance tolerance must be ±5%. A temperature setting of -40°C~125°C is required to ensure reliable performance of NTC thermistors. NTC thermistors have a total of 2 terminals. The 2 pins of the NTC thermistors must be connected to make the thermistors work correctly. 0.1W power can be dissipated by the electronic component. A NTC thermistor is capable of dissipating 100mW of power. Fuse elements can tolerate a maximum current of 120?A without too much deterioration.

NCP03WL683J05RL Features

2 Pins
Package/Case: Tape & Reel (TR)
NCP03 Series
Operating Temperature: -40°C~125°C
68kOhm Resistance
Rated Power Dissipation: 0.1W
Mounting Type: Surface Mount
Current Rating of 120?A
5% Tolerance

NCP03WL683J05RL Applications

There are a lot of Murata Electronics
NCP03WL683J05RL NTC Thermistors applications.

Temperature compensation of display contrast
Temperature compensation of display backlighting (CCFL)
Personal Computer and Peripheral Device
Personal Computer and Peripheral Device
Liquid Crystal Display
Temperature measurement and compensation
LCD compensation
Battery packs
Mobile phones
CD players
