ONSEMI NCN1188MUTAG
ONSEMI NCN1188MUTAG

ONSEMI NCN1188MUTAG

Manufacturer No:

NCN1188MUTAG

Manufacturer:

ONSEMI

Package:

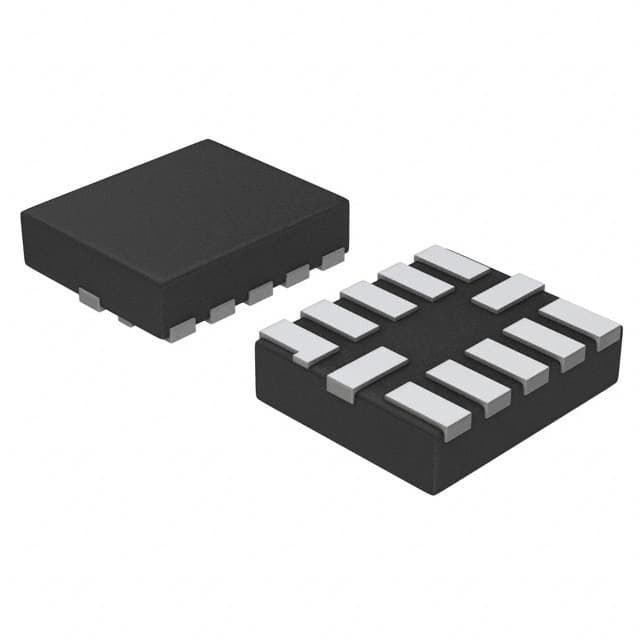

12-UFQFN

Description:

Data Switch, 3:1 High Speed USB Switch with Audio and MHL Capability

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCN1188MUTAG information

ONSEMI NCN1188MUTAG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCN1188MUTAG.

  • Type
  • Parameter
  • Channels
  • 2
  • Number of Switches
  • 4
  • Configuration
  • DP3T
  • ron Max (Ω)
  • 7.5
  • Package Type
  • UQFN-12
  • Case Outline
  • 523AE
  • Container Type
  • REEL
  • Icc Max (µA)
  • 35
  • VCC Min (V)
  • 2.7
  • VCC Max (V)
  • 5.5
  • MSL Type
  • 1
  • MSL Temp (°C)
  • 260
  • Container Qty.
  • 3000

Download datasheets and manufacturer documentation for ONSEMI NCN1188MUTAG.

Datasheet:

Package Drawing:

The NCN1188 allows portable systems to share a single USB 2.0 or 3.0 receptacle to transmit and receive paired signals from three separate locations. All of the three differential channels are compliant to High Speed USB 2.0, Full Speed USB 1.1, Low Speed USB 1.0 and any generic UART protocol. The two dedicated high speed data paths also support Mobile High Definition Link (MHL) video up to resolutions of 1080i (2.25 Gbps) and 1080p (3 Gbps in PackedPixel mode). The multi-purpose audio path is capable of passing signals with negative voltages as low as 2 V below ground and features shunt resistors to reduce Pop and Click noise in the audio system. The NCN1188 is housed in a space saving, ultra low profile 2.0 x 1.7 x 0.5 mm, 12 pins UQFN package.

Application

  • USB 2.0 / 3.0 MicroB Applications
  • USB to HDMI Video Interfaces via MHL

End Product

  • Features Phones and Smart Phones
  • Digital Cameras
  • Handset Media Players

Feature

  • 3:1 High Speed Switch
  • 5.25 V Tolerant Common Pins
  • High Bandwidth of 1.8 GHz on HDN/HDP
  • Pass Negative Swing Signals Down to -2 V on Audio Channels
  • 1.8V Control Pins
  • Audio Channel Shunt Resistors
  • Ultra-low THD in Audio Mode: 0.01%
