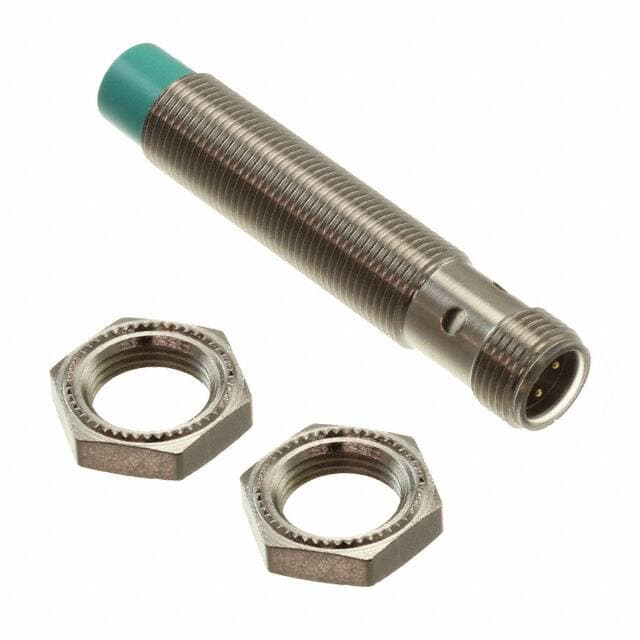

Pepperl+Fuchs, Inc. NBN8-12GM50-A2-V1

Manufacturer No:

NBN8-12GM50-A2-V1

Manufacturer:

Pepperl+Fuchs, Inc.

Package:

Cylinder, Threaded - M12

Description:

10V~30V Inductive Cylinder, Threaded - M12 Nickel-Plated Brass Connector Cylinder, Threaded - M12 4-Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NBN8-12GM50-A2-V1 information

Pepperl+Fuchs, Inc. NBN8-12GM50-A2-V1 technical specifications, attributes, parameters and parts with similar specifications to Pepperl+Fuchs, Inc. NBN8-12GM50-A2-V1.

Type
Parameter

Factory Lead Time
2 Weeks

Mount
Flush

Package / Case
Cylinder, Threaded - M12

Number of Pins
4

Housing Material
Brass

Material - Body
Nickel-Plated Brass

Operating Temperature
-25°C~70°C

Published
2004

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
10V~30V

Shielding
Unshielded

Ingress Protection
IP67

Termination Style
Connector

Output Type
PNP-NC/NO, 4-Wire

Operating Supply Voltage
30V

Sensing Distance
0.315 (8mm)

Sensor Type
Inductive

Indicator
LED

Switching Frequency
1.5kHz

Switching Current
200mA

Length
65mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Pepperl+Fuchs, Inc. NBN8-12GM50-A2-V1.

Datasheets:

pepperlfuchsinc-nbn812gm50a2v1-datasheets-6434.pdf

pepperlfuchs-nbn812gm50a2v1-datasheets-3764.pdf

NBN8-12GM50-A2-V1 Overview

In order to make things easier for you, it's included in the Cylinder, Threaded - M12 package. It is possible to operate proximity sensors successfully at a temperature of -25°C~70°C. The pin count of this electronic component is 4. Maximum efficiency is achieved by setting proximity sensors' supply voltage to 30V. It is important for the rate to be 1.5kHz so that the proximity sensors will work. To work well, the reed switch's internal contacts should pass 200mA current.

NBN8-12GM50-A2-V1 Features

Operating Temperature: -25°C~70°C
Sensing Distance: 0.315 (8mm)
Voltage - Supply: 10V~30V
Package / Case: Cylinder, Threaded - M12
Moisture Sensitivity Level (MSL): Not Applicable

NBN8-12GM50-A2-V1 Applications

There are a lot of Pepperl+Fuchs, Inc.
NBN8-12GM50-A2-V1 Proximity Sensors applications.

Wearables
Contact less switching
Office automation equipment
Home appliances
Lighting
Display products
Air-conditioners
TV
PC monitors
Rice cookers
