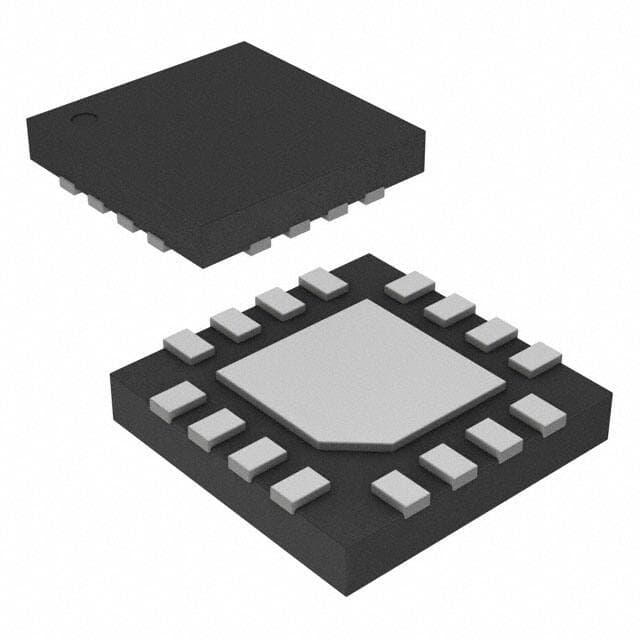

ONSEMI NB7NPQ702MMUTXG

Manufacturer No:

NB7NPQ702MMUTXG

Manufacturer:

ONSEMI

Package:

16-UFQFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) Signal Buffers, Repeaters, Splitters 3.135V~3.465V V 1.25pF pF

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NB7NPQ702MMUTXG information

ONSEMI NB7NPQ702MMUTXG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NB7NPQ702MMUTXG.

Type
Parameter

Factory Lead Time
25 Weeks

Mounting Type
Surface Mount

Package / Case
16-UFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2017

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Type
Buffer, ReDriver

Terminal Finish
Tin (Sn)

Applications
USB

Voltage - Supply
3.135V~3.465V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-XQCC-N16

Supply Voltage-Max (Vsup)
3.465V

Number of Channels
2

Current - Supply
150mA

Input
CML

Data Rate (Max)
10Gbps

Delay Time
150ps

Capacitance - Input
1.25pF

Signal Conditioning
Input Equalization, Output De-Emphasis

Length
3mm

Height Seated (Max)
0.55mm

Width
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI NB7NPQ702MMUTXG.

PCN Obsolescence/ EOL:

onsemiconductor-lc72722pmtlme-pcnobsolescenceeol-4084.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NB7NPQ702MMUTXG Overview

The power buffer package contains 16-UFQFN Exposed Pad for ease of transportation.Tape & Reel (TR) packages are ready for power buffer.Surface Mount Universal mout for easy adaptation.In terms of types, this is a typical Buffer, ReDriver.There is 3.135V~3.465V voltage used by this op amp buffer.In order to maintain the output quality, 2 channels work together.Input is facilitated by CML.It is recommended to set the operating temperature to -40°C~85°C to prevent malfunctions.There are a variety of applications for this operational amplifier buffer, including USB.The op amp buffer has 16 terminals.The peak reflow temperature is NOT SPECIFIED.The op amp buffers belong to the 150mA family.It is not recommended to feed the repeter with a voltage higher than 3.465V.The splitter requires at least 3.135V to operate.

NB7NPQ702MMUTXG Features

2 channels.
Mainly used in USB.

NB7NPQ702MMUTXG Applications

There are a lot of ON Semiconductor
NB7NPQ702MMUTXG Signal Buffers, Repeaters, Splitters applications.

PECL-to-LVDS Translation
Cellular Phone Base Stations
Add/Drop Muxes
Digital Crossconnects
Network Switches/Routers
Backplane Interconnect
Clock Distribution
Protection Switching
Loopback
Clock Distribution
