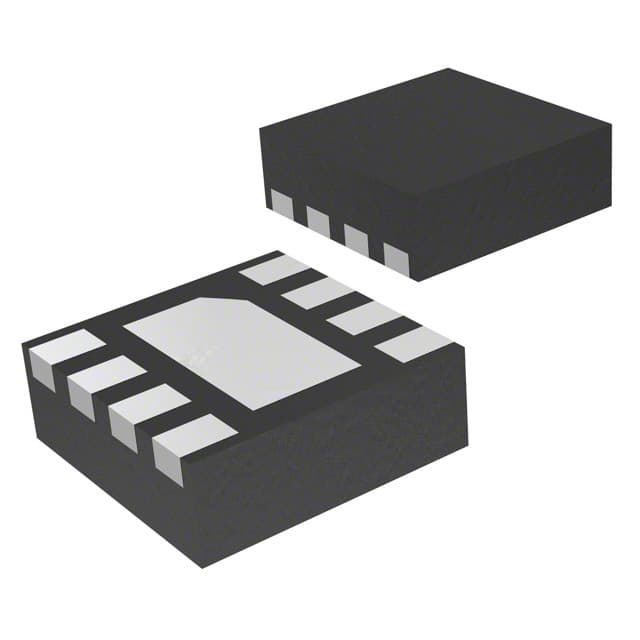

ONSEMI NB7NPQ701MMTTBG

Manufacturer No:

NB7NPQ701MMTTBG

Manufacturer:

ONSEMI

Package:

8-WFDFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) Signal Buffers, Repeaters, Splitters 3.135V~3.465V V 1.25pF pF

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NB7NPQ701MMTTBG information

ONSEMI NB7NPQ701MMTTBG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NB7NPQ701MMTTBG.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
8-WFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2017

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Type
Buffer, ReDriver

Terminal Finish
Tin (Sn)

Applications
USB

Voltage - Supply
3.135V~3.465V

Terminal Position
DUAL

Terminal Form
NO LEAD

Number of Functions
1

Terminal Pitch
0.5mm

JESD-30 Code
S-PDSO-N8

Supply Voltage-Max (Vsup)
3.465V

Number of Channels
1

Current - Supply
70mA

Data Rate (Max)
10Gbps

Delay Time
150ps

Capacitance - Input
1.25pF

Signal Conditioning
Input Equalization, Output De-Emphasis

Length
2mm

Height Seated (Max)
0.8mm

Width
2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI NB7NPQ701MMTTBG.

PCN Obsolescence/ EOL:

onsemiconductor-lc72722pmtlme-pcnobsolescenceeol-4084.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

NB7NPQ701MMTTBG Overview

For convenience, power buffer comes packaged in 8-WFDFN Exposed Pad.Power buffer ready in Tape & Reel (TR) packages.The Surface Mount universal mout is designed for easy adaptability.As far as types go, this is a typical Buffer, ReDriver.It works on 3.135V~3.465V voltage.It is the cooperation of the 1 channels that maintains the quality of the output.CML inputs are facilitated.It is recommended that the operating temperature is set to -40°C~85°C to prevent malfunctions.Among other applications, this operational amplifier buffer targets the USB platform.An op amp buffer with 8 terminals can be found.OP amp buffers 70mA.In order to keep the repeter functioning, you cannot feed it voltage higher than 3.465V.

NB7NPQ701MMTTBG Features

1 channels.
Mainly used in USB.

NB7NPQ701MMTTBG Applications

There are a lot of ON Semiconductor
NB7NPQ701MMTTBG Signal Buffers, Repeaters, Splitters applications.

Network Switches/Routers
Backplane Interconnect
Clock Distribution
Protection Switching
Loopback
Clock Distribution
Servers
Industrial PCs
Test Equipment
Desktop Computers
