ONSEMI NB3N5573DTR2G
Manufacturer No:
NB3N5573DTR2G
Manufacturer:
Package:
16-TSSOP (0.173, 4.40mm Width)
Description:

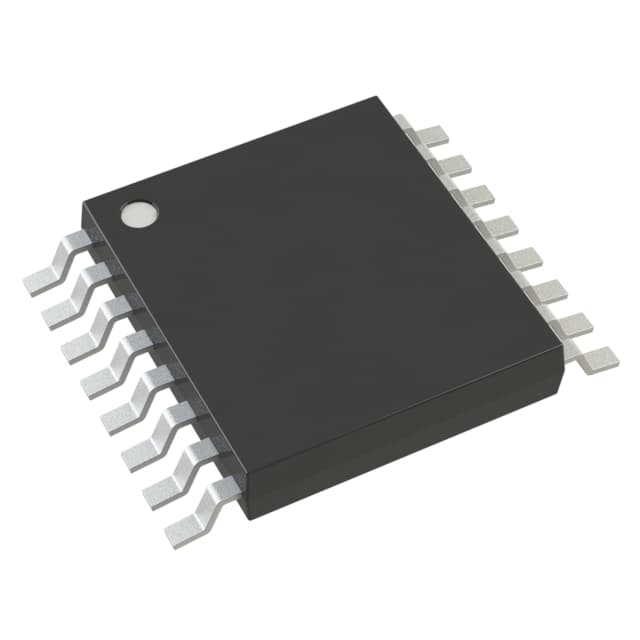

Clock Generator, Crystal to 25 MHz, 100 MHz, 125 MHz, 200 MHz, 3.3 V, with Dual HCSL
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NB3N5573DTR2G information
ONSEMI NB3N5573DTR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NB3N5573DTR2G.
- Type
- Parameter
- Container Type
- REEL
- Container Qty.
- 2500
- tR & tF Typ (ps)
- 340
- MSL Temp (°C)
- 260
- Input Level
- Crystal
- Output Level
- HCSL
- VS Typ (V)
- 3.63
- tR & tF Max (ps)
- 700
- TA Min (°C)
- -40
- TA Max (°C)
- 85
- Package Type
- TSSOP-16
- MSL Type
- 1
- fout Typ (MHz)
- 25-200
- tJitter(Cy-Cy) Typ (ps)
- 2
- tJitter(Period) Typ (ps)
- 1.5
- tJitter(Φ) Typ (ps)
- 0.4
- Case Outline
- 948F-01
- fin Typ (MHz)
- 25
Download datasheets and manufacturer documentation for ONSEMI NB3N5573DTR2G.
Datasheet:
Package Drawing:
The NB3N5573 is a high precision, low phase noise clock generator that supports PCI Express and Ethernet requirements. The device is accepts a 25 MHz fundamental mode parallel resonant crystal and generates differential HCSL output at 25 MHz, 100 MHz, 125 MHz or 200 MHz clock frequencies.
Application
- Gigabit Ethernet
- FB DIMM
- PCIe Clock Generation Gen 1, Gen 2, Gen 3, Gen 4
End Product
- Servers
- Networking Equipment
- Set Top Box
Feature
- Typical Period RMS jitter of 1.5 ps
- HCSL Differential Output
- Uses 25 MHz Fundamental Mode Parallel Resonant Crystal
- Industrial Temperature Range -40C to +85C
- Operating Range 3.3 V +/- 10%
- PCIe Gen1, Gen2, Gen3, Gen4, QPI, UPI Jitter Compliant
