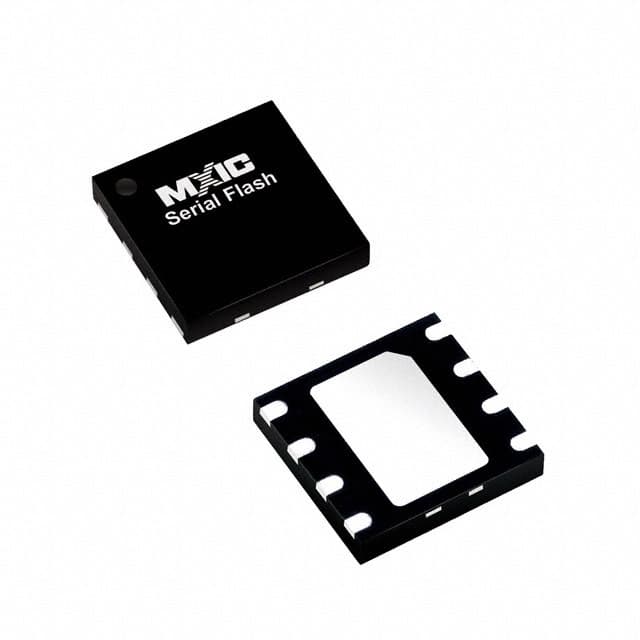

MACRONIX MX25L3206EZUI-12G

Manufacturer No:

MX25L3206EZUI-12G

Manufacturer:

MACRONIX

Package:

Description:

8 Pin Memory IC 32 Mb kb 4mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MX25L3206EZUI-12G information

MACRONIX MX25L3206EZUI-12G technical specifications, attributes, parameters and parts with similar specifications to MACRONIX MX25L3206EZUI-12G.

Type
Parameter

Surface Mount
YES

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
3A991.B.1.A

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.32.00.51

Subcategory
Flash Memories

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Frequency
86MHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

JESD-30 Code
S-PDSO-N8

Qualification Status
Not Qualified

Operating Supply Voltage
3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.7V

Interface
SPI, Serial

Memory Type
FLASH, NOR

Operating Mode
SYNCHRONOUS

Supply Current-Max
0.025mA

Frequency (Max)
86MHz

Organization
16MX2

Memory Width
2

Density
32 Mb

Standby Current-Max
0.00002A

Serial Bus Type
SPI

Endurance
100000 Write/Erase Cycles

Data Retention Time-Min
20

Write Protection
HARDWARE/SOFTWARE

Alternate Memory Width
1

Length
4mm

Height Seated (Max)
0.6mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MACRONIX MX25L3206EZUI-12G.

MX25L3206EZUI-12G Overview

As far as its memory type goes, it falls into the FLASH, NOR category. There are 8 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. The memory device is designed to be supplied with an 3.3V volt power supply in order to operate properly. It is worth noting that this memory device has 8 pins, which indicates it has 8 memory locations. This memory chip has an operating supply voltage of 3V. Memory ics must operate at a temperature of at least -40°C. Temperatures over 85°C°C are not recommended. Integrated into this memory is a SPI-type serial bus that facilitates data transmission to the CPU. The device is able to run from a max supply current of 0.025mA , so it can be used in any environment. There is a common misconception that this component is a type of Flash Memories. There is an 86MHz frequency with which this memory chip processes data. In this Memory chip, the maximum frequency is 86MHz.

MX25L3206EZUI-12G Features

Operating Supply Voltage:3V
Freguency at 86MHz
86MHz terminals

MX25L3206EZUI-12G Applications

There are a lot of Macronix
MX25L3206EZUI-12G Memory applications.

multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
