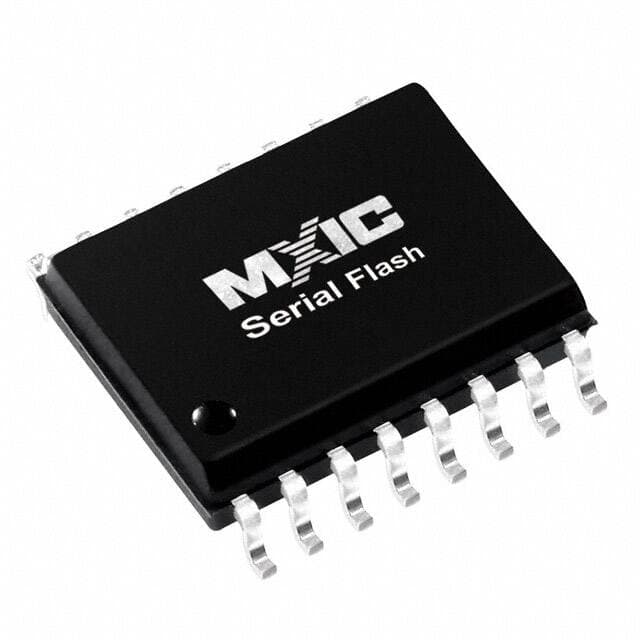

MACRONIX MX25L12865EMI-10G

Manufacturer No:

MX25L12865EMI-10G

Manufacturer:

MACRONIX

Package:

16-SOIC (0.295, 7.50mm Width)

Description:

3/3.3V V MXSMIO? 16 Pin Memory IC MXSMIO? Series 10.3mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MX25L12865EMI-10G information

MACRONIX MX25L12865EMI-10G technical specifications, attributes, parameters and parts with similar specifications to MACRONIX MX25L12865EMI-10G.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.295, 7.50mm Width)

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Series
MXSMIO?

Part Status
Not For New Designs

Number of Terminations
16

ECCN Code
3A991.B.1.A

Additional Feature
ALSO CONFIGURABLE AS 128M X 1

HTS Code
8542.32.00.51

Technology
FLASH - NOR

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

JESD-30 Code
R-PDSO-G16

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3/3.3V

Memory Size
128Mb 16M x 8

Memory Type
Non-Volatile

Operating Mode
SYNCHRONOUS

Clock Frequency
104MHz

Supply Current-Max
0.025mA

Memory Format
FLASH

Memory Interface
SPI

Organization
32MX4

Memory Width
4

Write Cycle Time - Word, Page
300?s, 5ms

Standby Current-Max
0.00004A

Memory Density
134217728 bit

Parallel/Serial
SERIAL

Programming Voltage
3.3V

Serial Bus Type
SPI

Endurance
100000 Write/Erase Cycles

Data Retention Time-Min
20

Write Protection
HARDWARE/SOFTWARE

Alternate Memory Width
2

Length
10.3mm

Height Seated (Max)
2.65mm

Width
7.52mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MACRONIX MX25L12865EMI-10G.

Datasheets:

macronix-mx25l12865emi10g-datasheets-6793.pdf

MX25L12865EMI-10G Overview

In terms of its memory type, it can be classified as Non-Volatile. The case comes in Tube size. The case is embedded in 16-SOIC (0.295, 7.50mm Width). Memory size on the chip is 128Mb 16M x 8. This device uses takes advantage of the FLASH format. The device's extended operating temperature range of -40°C~85°C TA makes it ideal for many demanding applications. The device is capable of handling a supply voltage of 2.7V~3.6V. The recommended mounting type for this device is Surface Mount. On the chip, there are 16 terminations. The comprehensive working procedure is supported by 1 functions in this part. A voltage of 3V is required for the operation of this memory device. There is a clock frequency rotation of the memory within a 104MHz range. A memory device like this has 16 pins, indicating that there are 16 memory locations on the device. It also features ALSO CONFIGURABLE AS 128M X 1 to boost system performance despite all its merits. This memory chip requires only 3/3.3V of power. MXSMIO? series memory devices play an important role in the applications they target. By integrating this memory with a SPI-type serial bus, data can be carried and transferred to the CPU easily. With a maximum supply current of 0.025mA , it is able to operate from a variety of supplies. A programming voltage of 3.3V is required to alter the state of certain nonvolatile memory arrays.

MX25L12865EMI-10G Features

Package / Case: 16-SOIC (0.295, 7.50mm Width)
Additional Feature:ALSO CONFIGURABLE AS 128M X 1

MX25L12865EMI-10G Applications

There are a lot of Macronix
MX25L12865EMI-10G Memory applications.

eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
