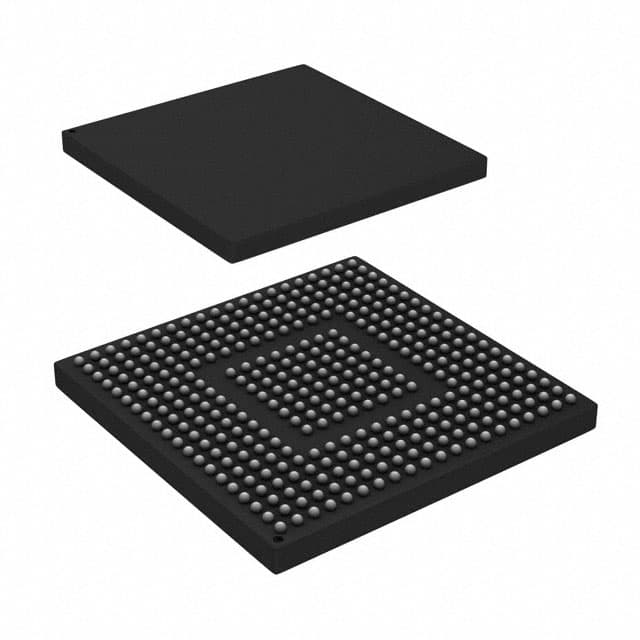

NXP MVF50NS151CMK40
Manufacturer No:
MVF50NS151CMK40
Manufacturer:
Package:
364-LFBGA
Description:
0.8mm ARM® Cortex®-A5 3.3V 16-bit Microprocessor Vybrid, VF5xx Series MVF50NS151 1.23V 364-LFBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MVF50NS151CMK40 information
NXP MVF50NS151CMK40 technical specifications, attributes, parameters and parts with similar specifications to NXP MVF50NS151CMK40.
- Type
- Parameter
- Factory Lead Time
- 15 Weeks
- Package / Case
- 364-LFBGA
- Surface Mount
- YES
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tray
- Series
- Vybrid, VF5xx
- Published
- 2002
- JESD-609 Code
- e1
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 364
- ECCN Code
- 5A002.A.1
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- HTS Code
- 8542.31.00.01
- Subcategory
- Microcontrollers
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 1.23V
- Terminal Pitch
- 0.8mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- MVF50NS151
- JESD-30 Code
- S-PBGA-B364
- Supply Voltage-Max (Vsup)
- 1.26V
- Power Supplies
- 3.3V
- Supply Voltage-Min (Vsup)
- 1.16V
- Number of I/O
- 131
- Speed
- 400MHz
- uPs/uCs/Peripheral ICs Type
- MICROCONTROLLER, RISC
- Core Processor
- ARM® Cortex®-A5
- Supply Current-Max
- 850mA
- Bit Size
- 16
- Has ADC
- YES
- DMA Channels
- YES
- PWM Channels
- NO
- DAC Channels
- YES
- Address Bus Width
- 16
- ROM (words)
- 0
- CPU Family
- CORTEX-A5
- External Data Bus Width
- 16
- Voltage - I/O
- 3.3V
- Ethernet
- 10/100Mbps (2)
- Number of Cores/Bus Width
- 1 Core 32-Bit
- Graphics Acceleration
- Yes
- RAM Controllers
- LPDDR2, DDR3, DRAM
- USB
- USB 2.0 OTG + PHY (1)
Download datasheets and manufacturer documentation for NXP MVF50NS151CMK40.
Datasheets:
Environmental Information:
PCN Assembly/Origin:
PCN Part Status Change:
MVF50NS151CMK40 Overview
Shipping overseas is convenient since the embedded microprocessor is packed in 364-LFBGA. In order to provide high reliability, advanced packaging method Tray is used. Cores/Bus width is 1 Core 32-Bit. Recognize operating temperatures around -40°C~85°C TA. The cpu microprocessor belongs to the Vybrid, VF5xx series. The CPU is cored with a ARM® Cortex®-A5 processor. The CPU uses LPDDR2, DDR3, DRAM RAM controllers. This microprocessor features interfaces CAN, I2C, IrDA, LIN, SCI, SDHC, SPI, UART/USART. In this CPU, I/O is set to 3.3V. In terms of uPs and uCs as well as peripheral ICs, this is a MICROCONTROLLER, RISC. The microprocessor can be searched for with MVF50NS151 if you are looking for variants. In total, there are 364 terminations. When the voltage supply is 1.23V, the cpu microprocessor should be powered on and run. In terms of architecture, it is a 16-Bit system. It can supply a maximum current of 1.26V. Microcontrollers is a typical embedded microprocessor. 16 is the width of the external data bus on this CPU. According to its datasheet, this micro processor requires 3.3V power supplies. CPU voltage can't be higher than 850mA. Programs on the CPU transfer data through 131 I/Os. This embedded microprocessor is part of the CORTEX-A5 family.
MVF50NS151CMK40 Features
ARM® Cortex®-A5 Core
16-Bit Structure
131 I/Os
CORTEX-A5 CPU Family
MVF50NS151CMK40 Applications
There are a lot of NXP USA Inc.
MVF50NS151CMK40 Microprocessor applications.
- Consumer electronics products
- Toys
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
- Christmas lights
- 3D printers
