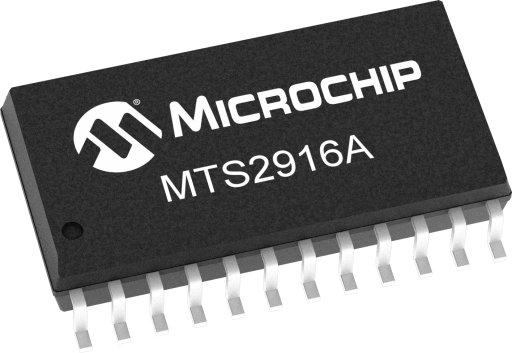

Microchip MTS2916A-HGC1

Manufacturer No:

MTS2916A-HGC1

Manufacturer:

Microchip

Package:

24-SOIC (0.295, 7.50mm Width)

Description:

DUAL FULL-BRIDGE PWM MOTOR DRIVER IC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MTS2916A-HGC1 information

Microchip MTS2916A-HGC1 technical specifications, attributes, parameters and parts with similar specifications to Microchip MTS2916A-HGC1.

Type
Parameter

Integrated LIN TR/RX
No

Integrated Op Amps
0

Motor Control Methods
Direct PWM Input,Current Limit Control,Microstepping

Motor Speed Output
No

Integrated Voltage Regs
0

Supply Voltage Max (V)
40

Supply Voltage Min (V)
10

Output Type
Integrated Driver

TempRange Max
105

TempRange Min
-40

Download datasheets and manufacturer documentation for Microchip MTS2916A-HGC1.

Data Sheets:

5ddc86ea88bbf8e61b449f8fbb8275c7.pdf

User Guide:

8e5a7615849cdc11c6084e2be859e258.pdf

The MTS2916A motor driver is an integrated circuit able to drive both windings of a bipolar stepper motor or bi-directionally control two DC motors. The two output bridges can sustain 40V and deliver up to 750mA of continuous current each. The maximum output current, controlled by a PWM circuit, is determined by the user’s selection of a reference voltage, a sensing resistor and two logic inputs. The outputs have been optimized for a low output saturation voltage drop.

Pin-to-pin compatible with Allegro 2916 circuit
Able to drive both windings of a bipolar stepper motor
Load voltage supply range: 10V to 40V
Output current up to 750mA (each bridge)
Internal fixed Toff time PWM current control
Built-in protection diodes
Internal thermal shutdown
Under-voltage lockout
LS-TTL compatible logic inputs with pull-up resistors
Low Ron output resistance
Low Quiescent Current

User Guide
