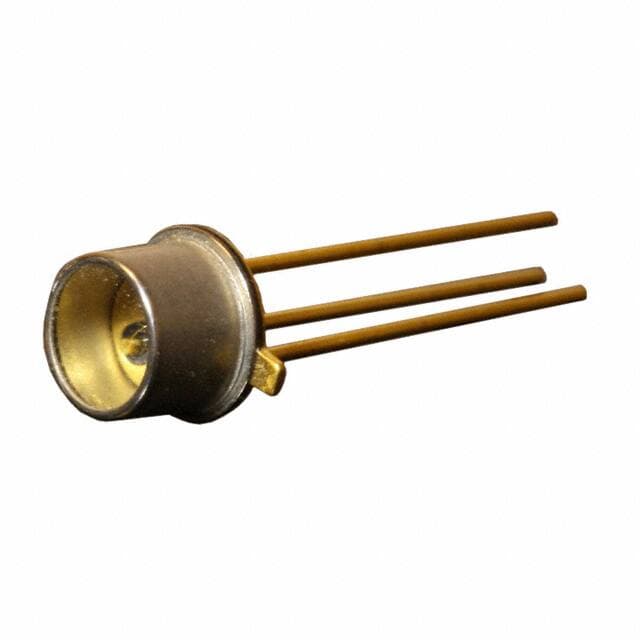

Marktech Optoelectronics MTPD1346-100

Manufacturer No:

MTPD1346-100

Manufacturer:

Marktech Optoelectronics

Package:

Description:

Through Hole -40°C~85°C Bulk Wavelength: 1300nm 5V 0.79mm2 200nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MTPD1346-100 information

Marktech Optoelectronics MTPD1346-100 technical specifications, attributes, parameters and parts with similar specifications to Marktech Optoelectronics MTPD1346-100.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Semiconductor Material
InGaAs

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
1346

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Subcategory
Photo Diodes

Reach Compliance Code
unknown

Diode Type
PIN

Viewing Angle
45°

Voltage - DC Reverse (Vr) (Max)
5V

Max Reverse Voltage (DC)
5V

Wavelength
1300nm

Dark Current
200nA

Spectral Range
800nm ~ 1750nm

Active Area
0.79mm2

Color - Enhanced
Infrared (NIR)/Red

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Marktech Optoelectronics MTPD1346-100.

Datasheets:

marktechoptoelectronics-mtpd1346100-datasheets-0590.pdf

MTPD1346-100 Overview

Photodiodes are enclosed in Bulk to prevent damage. Continuous reverse-bias means the photodiodes can withstand only 5V voltage. When reverse-biased, the photodiodes should not continually exceed 5V. There is 200nA current flowing through a photodiode even in the absence of light input.

MTPD1346-100 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 800nm ~ 1750nm
Viewing Angle: 45°

MTPD1346-100 Applications

There are a lot of Marktech Optoelectronics
MTPD1346-100 Photodiodes applications.

Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
