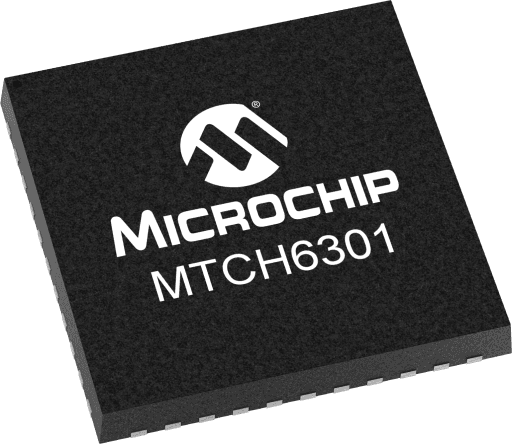

Microchip MTCH6301-I/ML

Manufacturer No:

MTCH6301-I/ML

Manufacturer:

Microchip

Package:

44-VQFN Exposed Pad

Description:

Touch Controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MTCH6301-I/ML information

Microchip MTCH6301-I/ML technical specifications, attributes, parameters and parts with similar specifications to Microchip MTCH6301-I/ML.

Type
Parameter

Product Type
Projected Capacitive Controller

Input Channels
13

Output Channels
18

Measurement Principle
Self/Mutual Capacitance

Report Rate (pps)
100

Number of Touches
10

Power Modes
2

Position Resolution
4096x4096

Interface
I2C

I/O, LED Drivers
31

Other Features
2D Gesture support

Voltage Min. (V)
2.40

Voltage Max. (V)
3.60

Download datasheets and manufacturer documentation for Microchip MTCH6301-I/ML.

Supporting Collateral:

0b90a444b8a14258524973b0d02e467c.pdf

Data Sheets:

3c56427b9be23ea8169d9707bd709381.pdf

eedc9f7c1f1588dc21efe2be58382760.pdf

Microchip offers a wide portfolio of capacitive touch controllers. The maXTouch portfolio covers solutions for all touch surfaces and touch screens up to 24” diagonal size.

Up to 10 touches detected
Gesture detection and reporting
Supports sensor sizes up to approximately 4.3” diagonal
Self and mutual capacitive signal acquisition
Noise detection and filtering
Individual channel tuning for optimal sensitivity
Configuration Utility with autotune for fast and easy design integration
Up to 13 Receiver channels (RX) x 18 Transmitter (TX) channels
Works with printed circuit boards (PCB), film, glass, and flexible printed circuits (FPC) sensors
Cover layer support:
plastic up to 3mm
glass up to 5mm
>100 Reports per second single touch
>60 Reports per second dual touch
Up to 12-bit resolution coordinate reporting
11 single touch gestures detected and reported
Configurable response time, <10ms typical
20mA Operating Current
Configurable Sleep Mode, 20µA Sleep Current
Integrated Power-on Reset and Brown-out Reset
I²C™ (up to 400 kbps)
2.4V to 3.6V, -40°C to +105°C
44-Lead TQFP 10x10mm
44-Lead QFN 8x8mm

User Guide
