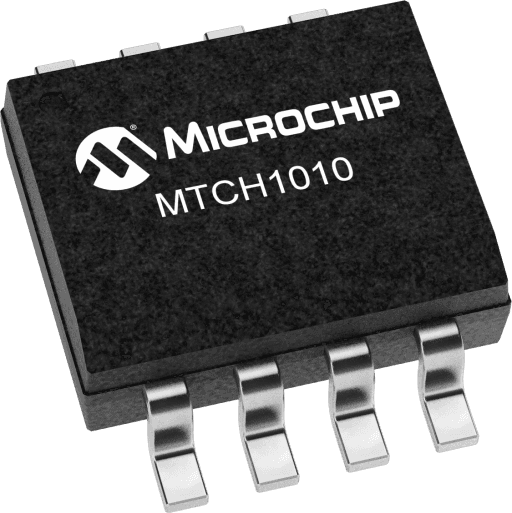

Microchip MTCH1010-V/SN
Microchip MTCH1010-V/SN

Microchip MTCH1010-V/SN

Manufacturer No:

MTCH1010-V/SN

Manufacturer:

Microchip

Package:

Description:

The MTCH1010 is a single channel capacitive touch button controller

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MTCH1010-V/SN information

Microchip MTCH1010-V/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip MTCH1010-V/SN.

  • Type
  • Parameter
  • I/O, LED Drivers
  • 1
  • Input Channels
  • 1
  • Number of Keys Max
  • 1
  • Measurement Principle
  • Self Capacitance
  • Number of Touches
  • 0
  • Other Features
  • Moisture Tolerance
  • Output Channels
  • 1
  • Power
  • 3.3Vdc ±5%
  • Power Modes
  • 0
  • Product Type
  • Proximity/Keys/Slider
  • Proximity detection
  • Yes
  • Report Rate (pps)
  • 0
  • Slider
  • No
  • Temp Range
  • -40°C to +125°C
  • Voltage Max
  • 5.50
  • Voltage Min
  • 2.00

Download datasheets and manufacturer documentation for Microchip MTCH1010-V/SN.

Data Sheets:

Application Notes:

The MTCH1010 is a single channel touch controller with digital output. The sensitivity, response time, and the oversampling are configurable via GPIO settings. The MTCH10xx touch turnkey part family delivers water tolerant touch by applying Driven Shield technology. The driven shield increases SNR, actively protects against noise and enables water tolerant touch.

MTCH10xx touch turnkey family

Robust Touch, easy to design in, no firmware efforts during development, GPIO controlled:

The MTCH10xx family delivers a robust touch experience under challenging condition. Please follow the design guidelines from Microchips Capacitive Touch Design Guide (AN2334).

The MTCH1030 and MTCH1060 add enhanced features:

  • Easy Tune - saving time in development bt auto-tuning buttons during runtime
  • Single Button Mode - Intelligent power mode
  • Touch Tune - Touch data visualization via MPLAB Data Visualizer during development and validation

The MTCH1010 Evaluation Kit (EV24Z38A) passes the highest test level 3 (10Vrms) of the IEC6100-4-6 conducted immunity standard, works out of the and got the ability to connect an external electrode for quick prototyping.



    MTCH10xx family features
  • Robust touch with high Signal to Noise Ration (SNR)
  • Active noise avoidance
  • Water tolerance
  • I/O interface to host
  • I/O based configuration
    MTCH1030 / MTCh1060 addional features
  • Easy Tune
  • Single Button Mode
  • Touch Data Visualization

User Guide
