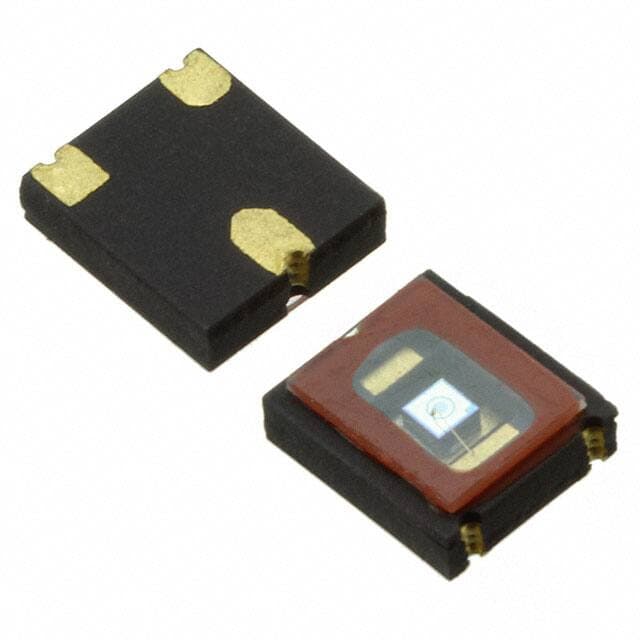

Marktech Optoelectronics MTAPD-07-001

Manufacturer No:

MTAPD-07-001

Manufacturer:

Marktech Optoelectronics

Package:

3-LCC

Description:

Surface Mount -20°C~85°C Strip Wavelength: 800nm 3-LCC 200V 230?m Dia 300ps 400pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MTAPD-07-001 information

Marktech Optoelectronics MTAPD-07-001 technical specifications, attributes, parameters and parts with similar specifications to Marktech Optoelectronics MTAPD-07-001.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
3-LCC

Operating Temperature
-20°C~85°C

Packaging
Strip

Published
2014

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
5A (24 Hours)

Diode Type
Avalanche

Response Time
300ps

Voltage - DC Reverse (Vr) (Max)
200V

Max Reverse Voltage (DC)
200V

Wavelength
800nm

Dark Current
400pA

Spectral Range
400nm ~ 1100nm

Active Area
230?m Dia

Responsivity @ nm
50 A/W @ 800nm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Marktech Optoelectronics MTAPD-07-001.

Datasheets:

marktechoptoelectronics-mtapd07001-datasheets-5696.pdf

MTAPD-07-001 Overview

These photodiodes are packaged in the Strip to protect them from damage. The photodiodes are put into 3-LCC packages for safety protection. In reverse-bias mode on a continual basis, the maximum amount of voltage the photodiodes can withstand is 200V. The voltage for the photodiodes should not exceed 200V in reverse-bias mode on a continual basis. Even in the absence of light input, a photodiode occurs 400pA current.

MTAPD-07-001 Features

Moisture Sensitivity Level (MSL): 5A (24 Hours)
Operating Temperature: -20°C~85°C
Packaging: Strip
Diode Type: Avalanche
Mount: Surface Mount
Spectral Range: 400nm ~ 1100nm
Response Time: 300ps
Responsivity @ nm: 50 A/W @ 800nm

MTAPD-07-001 Applications

There are a lot of Marktech Optoelectronics
MTAPD-07-001 Photodiodes applications.

High speed photo detector
Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
