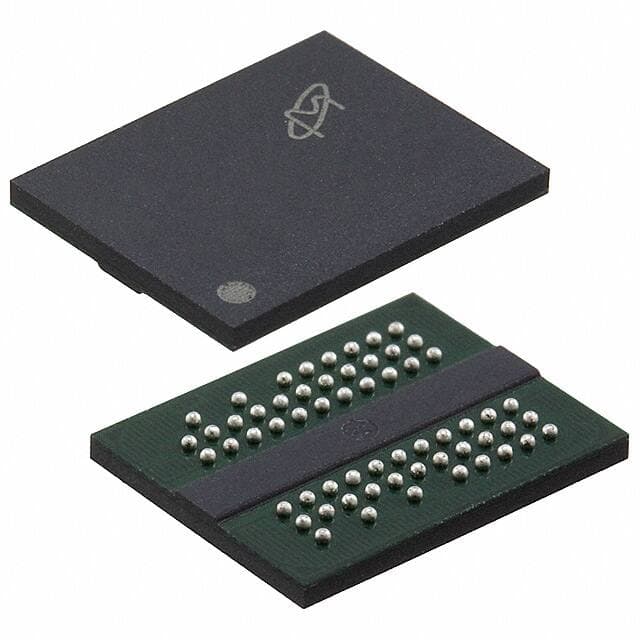

MICRON MT47H256M8EB-25E:C

Manufacturer No:

MT47H256M8EB-25E:C

Manufacturer:

MICRON

Package:

60-TFBGA

Description:

Surface Mount 60 Pin Memory IC MT47H256M8 2 Gb kb 11.5mm mm 130mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MT47H256M8EB-25E:C information

MICRON MT47H256M8EB-25E:C technical specifications, attributes, parameters and parts with similar specifications to MICRON MT47H256M8EB-25E:C.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
60-TFBGA

Number of Pins
60

Memory Types
Volatile

Usage Level
Commercial grade

Operating Temperature
0°C~85°C TC

Packaging
Tray

Published
2011

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
60

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

Additional Feature
AUTO/SELF REFRESH

HTS Code
8542.32.00.36

Voltage - Supply
1.7V~1.9V

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
MT47H256M8

Pin Count
60

Operating Supply Voltage
1.8V

Supply Voltage-Max (Vsup)
1.9V

Supply Voltage-Min (Vsup)
1.7V

Memory Size
2Gb 256M x 8

Number of Ports
1

Nominal Supply Current
130mA

Clock Frequency
400MHz

Access Time
400ps

Memory Format
DRAM

Memory Interface
Parallel

Data Bus Width
8b

Organization
256MX8

Output Characteristics
3-STATE

Memory Width
8

Write Cycle Time - Word, Page
15ns

Address Bus Width
18b

Density
2 Gb

Standby Current-Max
0.012A

Max Frequency
800MHz

Download datasheets and manufacturer documentation for MICRON MT47H256M8EB-25E:C.

Datasheets:

micron-mt47h256m8eb25ec-datasheets-8749.pdf

micron-mt47h256m8eb25ec-datasheets-8750.pdf

Product Description:

The MT47H256M8EB-25E:C is a 2Gb (256M x 8) synchronous DRAM (SDRAM) from Micron Technology Inc. This integrated circuit is designed for high-performance applications that require fast data transfer rates and low power consumption. The device operates at a clock frequency of 400MHz and features an access time of 400ps, making it suitable for use in a variety of systems, including servers, workstations, and embedded systems.

Features:

2Gb (256M x 8) synchronous DRAM
400MHz clock frequency
400ps access time
AUTO/SELF REFRESH feature for reduced power consumption
18-bit address bus width and 8-bit data bus width
60-pin 60-TFBGA package with tin/silver/copper (Sn96.5Ag3.0Cu0.5) terminal finish
Operating temperature range of 0°C to 85°C
Supply voltage range of 1.7V to 1.9V

Applications:

Primary applications:
- High-performance servers and workstations
- Embedded systems requiring fast data transfer rates
- Applications that require low power consumption
Secondary applications:
- Desktop computers
- Laptops
- Gaming consoles

Alternative Parts:

MT47H256M8EB-25E:D (same specifications, but with a different package type)
MT47H256M8EB-25E:E (same specifications, but with a different terminal finish)

Embedded Modules:

The MT47H256M8EB-25E:C is used in various embedded modules, including:
- Server motherboards
- Workstation motherboards
- Embedded system boards

FAQs:

Q: What is the access time of the MT47H256M8EB-25E:C? A: The access time is 400ps.

Q: What is the clock frequency of the MT47H256M8EB-25E:C? A: The clock frequency is 400MHz.

Q: What is the supply voltage range of the MT47H256M8EB-25E:C? A: The supply voltage range is 1.7V to 1.9V.

Q: What is the operating temperature range of the MT47H256M8EB-25E:C? A: The operating temperature range is 0°C to 85°C.

Q: What is the package type of the MT47H256M8EB-25E:C? A: The package type is 60-TFBGA.

Q: What is the terminal finish of the MT47H256M8EB-25E:C? A: The terminal finish is tin/silver/copper (Sn96.5Ag3.0Cu0.5).

Q: What is the lead time for the MT47H256M8EB-25E:C? A: The lead time is 4 weeks.

Q: When was the MT47H256M8EB-25E:C published? A: The MT47H256M8EB-25E:C was published in 2011.
