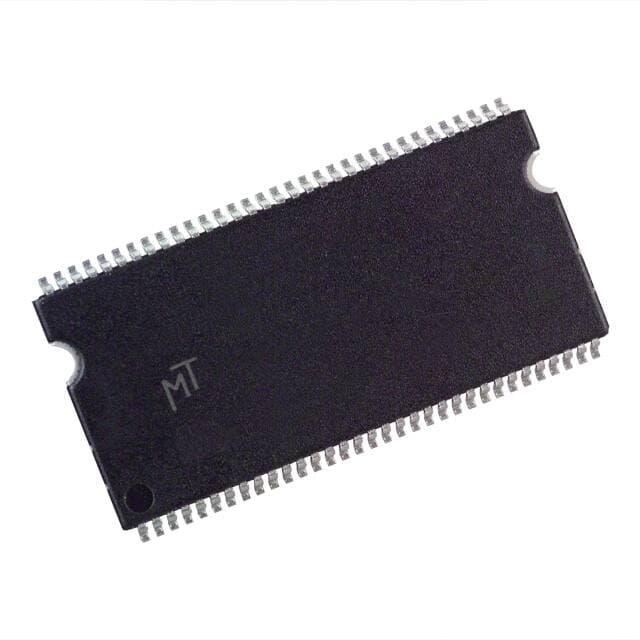

MICRON MT46V32M16TG-5B:C

Manufacturer No:

MT46V32M16TG-5B:C

Manufacturer:

MICRON

Package:

66-TSSOP (0.400, 10.16mm Width)

Description:

2.5V V Surface Mount 66 Pin Memory IC MT46V32M16 512 Mb kb 22.22mm mm 215mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MT46V32M16TG-5B:C information

MICRON MT46V32M16TG-5B:C technical specifications, attributes, parameters and parts with similar specifications to MICRON MT46V32M16TG-5B:C.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
66-TSSOP (0.400, 10.16mm Width)

Number of Pins
66

Operating Temperature
0°C~70°C TA

Packaging
Tray

Published
2007

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
66

ECCN Code
EAR99

Terminal Finish
TIN LEAD

Additional Feature
AUTO/SELF REFRESH

HTS Code
8542.32.00.28

Technology
SDRAM - DDR

Voltage - Supply
2.5V~2.7V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
235

Number of Functions
1

Supply Voltage
2.6V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Base Part Number
MT46V32M16

Pin Count
66

Qualification Status
Not Qualified

Operating Supply Voltage
2.6V

Supply Voltage-Max (Vsup)
2.7V

Power Supplies
2.5V

Supply Voltage-Min (Vsup)
2.5V

Memory Size
512Mb 32M x 16

Number of Ports
1

Nominal Supply Current
215mA

Memory Type
Volatile

Operating Mode
SYNCHRONOUS

Clock Frequency
200MHz

Access Time
700ps

Memory Format
DRAM

Memory Interface
Parallel

Organization
32MX16

Output Characteristics
3-STATE

Memory Width
16

Write Cycle Time - Word, Page
15ns

Address Bus Width
15b

Density
512 Mb

Standby Current-Max
0.005A

Download datasheets and manufacturer documentation for MICRON MT46V32M16TG-5B:C.

MT46V32M16TG-5B:C Overview

A Volatile-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tray case as well. Embedded in the 66-TSSOP (0.400, 10.16mm Width) case, memory ics is a single file. On the chip, there is an 512Mb 32M x 16 memory, which is the size of the chip's memory. There is a DRAM-format memory used in this device, which is the memory format used by mainstream devices. Featuring an extended operating temperature range of 0°C~70°C TA, this device allows it to be used in a variety of demanding applications. The device is capable of handling a supply voltage of 2.5V~2.7V volts. The recommended mounting type for memory ics is Surface Mount. A total of 66 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 2.6V will be necessary. A clock frequency rotation within 200MHz is used for the ic memory chip to rotate data. Similar parts are frequently selected using the ic memory chip's base part number, MT46V32M16. A 66-pin package containing this memory device is used to house this device. The memory device in question has 66 pins, thus indicating that it has 66 memory locations that can be accessed. There is a note indicating that this memory chip operates at an 2.6V volt supply voltage. The memory chip utilizes a straightforward, high-efficiency mounting method, Surface Mount mounting. There is a nominal supply current rating of 215mA for this memory component. This chip features all the merits of a conventional chip, but it also features AUTO/SELF REFRESH to improve system performance. 1 ports allow read/write access to one memory address in this chip. As for power supplies, this memory chip requires just 2.5V . As part of the design, the I/O port addresses are mapped into the memory using an COMMON-bit number.

MT46V32M16TG-5B:C Features

Package / Case: 66-TSSOP (0.400, 10.16mm Width)
66 Pins
Operating Supply Voltage:2.6V
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

MT46V32M16TG-5B:C Applications

There are a lot of Micron Technology Inc.
MT46V32M16TG-5B:C Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
