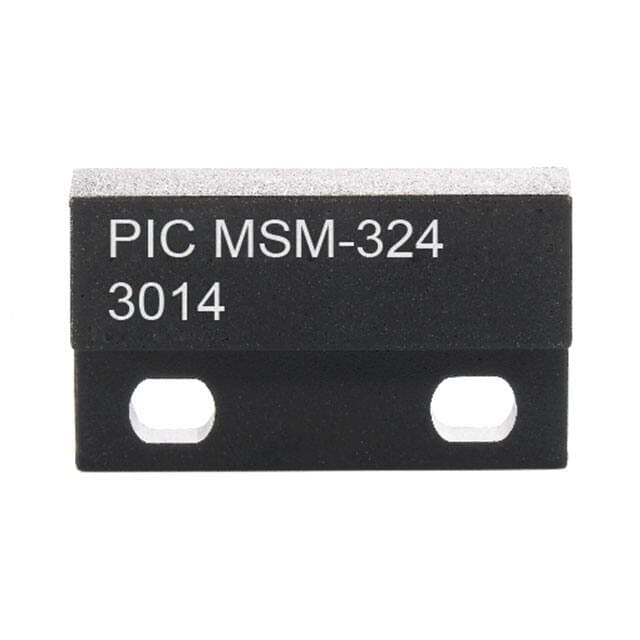

PIC GmbH MSM-324

Manufacturer No:

MSM-324

Manufacturer:

PIC GmbH

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MSM-324 information

PIC GmbH MSM-324 technical specifications, attributes, parameters and parts with similar specifications to PIC GmbH MSM-324.

Type
Parameter

Factory Lead Time
10 Weeks

Material
Neodymium Iron Boron (NdFeB)

Shape
Rectangular

Operating Temperature
85°C TA

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Size
0.906Lx0.232W x 0.547 H 23.00mmx5.90mmx13.90mm

Finish
Acrylonitrile Butadiene Styrene (ABS)

Magnetization
Axial

Gauss Strength
11050G

Grade
N30H

Height
5.9mm

Length
23mm

Width
13.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for PIC GmbH MSM-324.

Datasheets:

picgmbh-msm324-datasheets-8627.pdf

Description:

The PIC MSM-324 Miniature-actuating Magnet is a powerful, compact, and versatile magnet designed for a variety of applications. This magnet is made from a high-grade neodymium-iron-boron (NdFeB) material and is capable of producing a strong magnetic field. The MSM-324 is designed to be used in a variety of applications, including medical, industrial, and consumer applications.

Features:

? High-grade neodymium-iron-boron (NdFeB) material

? Compact and lightweight design

? Produces a strong magnetic field

? Versatile and can be used in a variety of applications

? Easy to install and use

Applications:

? Medical applications
? Industrial applications
? Consumer applications
? Automotive applications
? Robotics applications
? Aerospace applications
? Magnetic resonance imaging (MRI)
? Magnetic levitation (Maglev)
? Magnetic recording and storage
