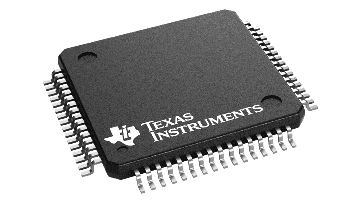

Texas Instruments MSC1211Y5PAGTG4

Manufacturer No:

MSC1211Y5PAGTG4

Manufacturer:

Texas Instruments

Package:

Description:

8051 CPU with 32kB Memory, I2C, 24-Bit ADC, and Quad 16-Bit DACs

Quantity:

In Stock :2374

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Sat, May 23 - Sun, May 24, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

MSC1211Y5PAGTG4 Information

Texas Instruments MSC1211Y5PAGTG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments MSC1211Y5PAGTG4.

Type
Parameter

Architecture
Delta-Sigma

Rating
Catalog

Operating temperature range (°C)
-40 to 125

Power consumption (typ) (mW)
4

Analog supply (min) (V)
2.7

Analog supply voltage (max) (V)
5.25

Package
TQFP (PAG)

Pins
64

Size
144 mm² 12 x 12

REACH Status
Yes

Type
Parameter

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Texas Instruments MSC1211Y5PAGTG4.

The MSC1211/12/13/14 are completely integrated families of mixed-signal devices incorporating a high-resolution delta-sigma () ADC, 16-bit DACs, 8-channel multiplexer, burnout detect current sources, selectable buffered input, offset DAC, Programmable Gain Amplifier (PGA), temperature sensor, voltage reference, 8-bit microcontroller, Flash Program Memory, Flash Data Memory, and Data SRAM.

On-chip peripherals include an additional 32-bit accumulator, an SPI-compatible serial port with FIFO, dual USARTs, multiple digital input/output ports, a watchdog timer, low-voltage detect, on-chip power-on reset, 16-bit PWM, breakpoints, brownout reset, three timer/counters, and a system clock divider. The MSC1211 and MSC1213 also contain a hardware I²C peripheral.

The devices accept low-level differential or single-ended signals directly from a transducer. The ADC provides 24 bits of resolution and 24 bits of no-missing-code performance using a Sinc³ filter with a programmable sample rate. The ADC also has a selectable filter that allows for high-resolution, single-cycle conversion.

The microcontroller core is 8051 instruction set compatible. The microcontroller core is an optimized 8051 core that executes up to three times faster than the standard 8051 core, given the same clock source. This design makes it possible to run the devices at a lower external clock frequency and achieve the same performance at lower power than the standard 8051 core.

The MSC1211/12/13/14 allow users to uniquely configure the Flash and SRAM memory maps to meet the needs of their applications. The Flash is programmable down to 2.7V using both serial and parallel programming methods. The Flash endurance is 100k Erase/Write cycles. In addition, 1280 bytes of RAM are incorporated on-chip.

The parts have separate analog and digital supplies, which can be independently powered from 2.7V to +5.25V. At +3V operation, the power dissipation for each part is typically less than 4mW. The MSC1211/12/13/14 are all available in a TQFP-64 package.

The MSC1211/12/13/14 are designed for high-resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation.

ANALOG FEATURES
- 24-Bits No Missing Codes
- 22-Bits Effective Resolution At 10Hz
  - Low Noise: 75nV
- PGA from 1 to 128
- Precision On-Chip Voltage Reference
  - Accuracy: 0.2%
  - Drift: 5ppm/°C
- 8 Differential/Single-Ended Channels
- On-Chip Offset/Gain Calibration
- Offset Drift: 0.1ppm/°C
- Gain Drift: 0.5ppm/°C
- On-Chip Temperature Sensor
- Selectable Buffer Input
- Burnout Detect
- 16-Bit Monotonic Voltage DACS:
  - Quad Voltage DACs (MSC1211, MSC1212)
  - Dual Voltage DACs (MSC1213, MSC1214)
DIGITAL FEATURES
- Microcontroller Core
  - 8051-Compatible
  - High-Speed Core
    - 4 Clocks per Instruction Cycle
  - DC to 40MHz at +85°C
  - Single Instruction 100ns
  - Dual Data Pointer
- Memory
  - Up To 32kb Flash Memory
  - Flash Memory Partitioning
  - Endurance 1M Erase/Write Cycles, 100-Year Data Retention
  - In-system Serially Programmable
  - External Program/Data Memory (64kB)
  - 1,280 Bytes Data SRAM
  - Flash Memory Security
  - 2kB Boot ROM
  - Programmable Wait State Control
- Peripheral Features
  - 34 I/O Pins
  - Additional 32-Bit Accumulator
  - Three 16-Bit Timer/Counters
  - System Timers
  - Programmable Watchdog Timer
  - Full-Duplex Dual USARTs
  - Master/Slave SPI™ with DMA
  - Multi-master I²C™ (MSC1211 and MSC1213)
  - 16-Bit PWM
  - Power Management Control
  - Internal Clock Divider
  - Idle Mode Current < 200µA
  - Stop Mode Current < 100nA
  - Programmable Brownout Reset
  - Programmable Low-Voltage Detect
  - 24 Interrupt Sources
  - Two Hardware Breakpoints
GENERAL FEATURES
- Pin-Compatible with MSC1210
- Package: TQFP-64
- Low Power: 4mW
- Industrial Temperature Range: –40°C to +125°C
- Power Supply: 2.7V to 5.25V
APPLICATIONS
- Industrial Process Control
- Instrumentation
- Liquid/Gas Chromatography
- Blood Analysis
- Smart Transmitters
- Portable Instruments
- Weigh Scales
- Pressure Transducers
- Intelligent Sensors
- Portable Applications
- DAS Systems
