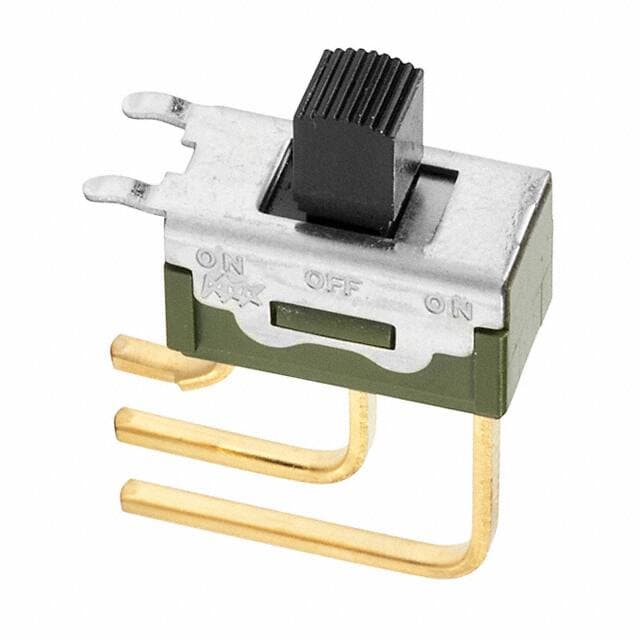

NKK Switches MS13ASG40
NKK Switches MS13ASG40

NKK Switches MS13ASG40

Manufacturer No:

MS13ASG40

Manufacturer:

NKK Switches

Package:

Description:

Description: Miniature Slide; part status: Active; Poles: SPDT; contact timing: Non-Shorting (BBM); Circuits: On-Off-On; Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Standard; actuator length: 5.10mm; contact material: Copper; contact finish: Gold; Mounting Type: Through Hole, Right Angle, Vertical; Termination Style: PC Pin; Features: Epoxy Sealed Terminals; Rating: 0.4

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MS13ASG40 information

NKK Switches MS13ASG40 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches MS13ASG40.

  • Type
  • Parameter
  • Pbfree Code
  • Yes
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Obsolete
  • Ihs Manufacturer
  • NKK SWITCHES CO LTD
  • Reach Compliance Code
  • not_compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.50.90.50
  • Samacsys Manufacturer
  • NKK Switches
  • Actuator Length
  • 0.209 inch
  • Actuator Type
  • PLUNGER
  • Body Breadth
  • 6.6 mm
  • Body Height
  • 12.7 mm
  • Body Length or Diameter
  • 10.16 mm
  • Center Contact Material
  • COPPER ALLOY
  • Center Contact Plating
  • GOLD OVER NICKEL
  • Contact (AC) Max Rating R Load
  • .014A@28VAC
  • Contact Current(AC)-Max
  • 0.014 A
  • Contact Current(DC)-Max
  • 0.014 A
  • Contact (DC) Max Power Rating R Load
  • 0.4VA@28VDC
  • Contact (DC) Max Rating R Load
  • .014A@28VDC
  • Contact Function
  • ON-OFF-ON
  • Contact Resistance
  • 0.02 mΩ
  • Contact Timing
  • BREAK-BEFORE-MAKE
  • Contact Voltage(AC)-Max
  • 28 V
  • Dielectric Withstand Volts
  • 1500VAC V
  • Electrical Life
  • 50000 Cycle(s)
  • End Contact Material
  • COPPER ALLOY
  • End Contact Plating
  • GOLD OVER NICKEL
  • Housing Material
  • STAINLESS STEEL
  • Insulation Resistance
  • 1000000000 Ω
  • Insulator Material
  • GLASS FILLED DIALLYL PHTHALATE
  • Mounting Feature
  • THROUGH HOLE-RIGHT ANGLE
  • Number of Positions
  • 3
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -30 °C
  • PCB Hole Count
  • 5
  • Sealing
  • EPOXY TERMINAL SEALED
  • Solderability
  • WAVE
  • Surface Mount
  • NO
  • Switch Action
  • LATCHED
  • Switch Function
  • SPDT
  • Switch Type
  • SLIDE SWITCH
  • Terminal Length
  • 0.106 inch
  • Terminal Material
  • COPPER ALLOY
  • Termination Type
  • SOLDER

Download datasheets and manufacturer documentation for NKK Switches MS13ASG40.

Datasheets:

Environmental Information:

PCN Assembly/Origin:

ConflictMineralStatement:

No product details available
