Microchip MRF89XAM9A-I/RM
Microchip MRF89XAM9A-I/RM

Microchip MRF89XAM9A-I/RM

Manufacturer No:

MRF89XAM9A-I/RM

Manufacturer:

Microchip

Package:

Module

Description:

SUB-GHZ TRANSCEIVER MODULE 915MHZ

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

MRF89XAM9A-I/RM Information

Microchip MRF89XAM9A-I/RM technical specifications, attributes, parameters and parts with similar specifications to Microchip MRF89XAM9A-I/RM.

  • Type
  • Parameter
  • Flash (KB)
  • 0
  • Frequency Range
  • 902 to 928
  • Link Budget
  • 125.5
  • Data Range (Kbps) Max
  • 40
  • Modulation
  • FSK, OOK
  • Operating Temp (°C) Min
  • -40
  • Operating Temp (°C) Max
  • 85
  • Operating Voltage (V) Min
  • 2.1
  • Operating Voltage (V) Max
  • 3.6
  • RX Current Consumption (mA)
  • 3
  • Type
  • Parameter
  • TX Current Consumption (mA)
  • 25
  • RX Sensitivity (dBm)
  • -113
  • SRAM (KB)
  • 0
  • TX Output Power (dBm)
  • 12.5

Download datasheets and manufacturer documentation for Microchip MRF89XAM9A-I/RM.

Certifications:

Brochures:

Application Notes:

Legacy Collaterals:

Data Sheets:

User Guide:

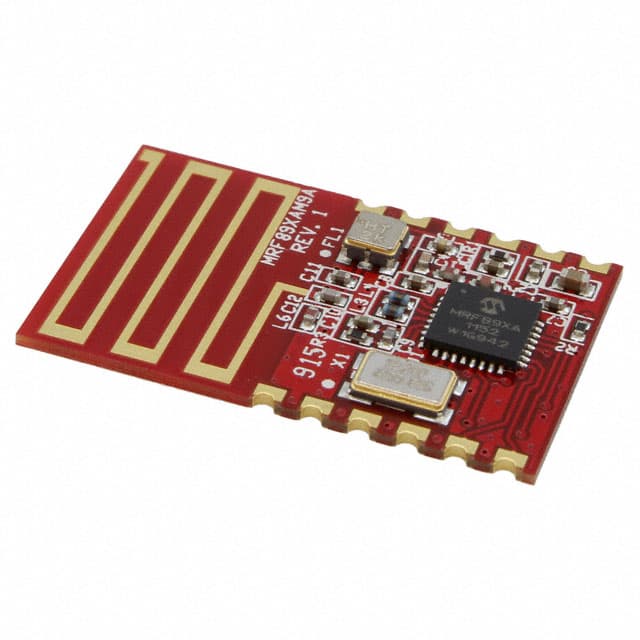

MRF89XAM9A is a 915MHz radio transceiver module. The MRF89XAM9A has an integrated PCB antenna, matching circuitry, and supports Microchip's proprietary protocol MiWi™ Development Environment.  The MRF89XAM9A module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for low power wireless sensor networks, home automation, building automation and consumer applications.

  • Module designed from the MRF89XA integrated ultra low-power, Sub-GHz transceiver IC
  • Supports proprietary Sub-GHz wireless protocols
  • Simple, SPI Interface with Interrupts
  • Small size: 0.7" x 1.1" (17.8 mm x 27.9 mm), surface mountable
  • Integrated crystal, internal voltage regulator, matching circuitry and Printed Circuit Board (PCB) antenna
  • Easy integration into final product: minimize product development, quicker time to market
  • Compatible with Microchip’s Microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)
  • End equipment using this module must be Regulatory certified for RF Emissions compliance
