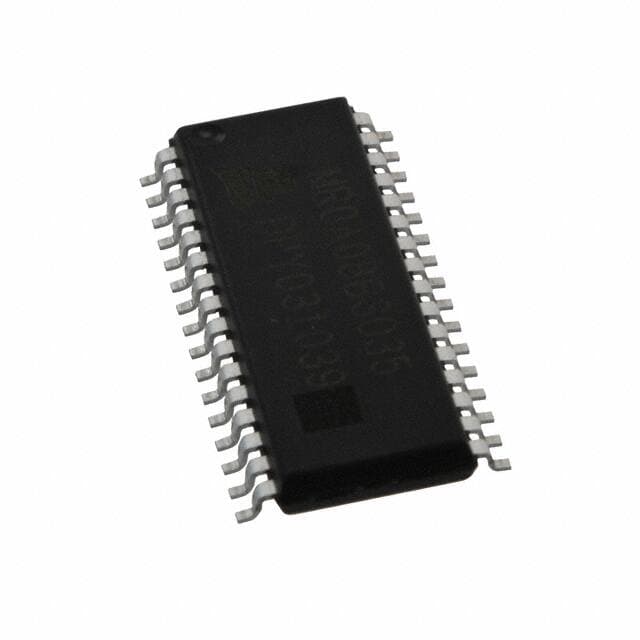

Everspin Technologies Inc. MR256A08BCSO35R

Manufacturer No:

MR256A08BCSO35R

Manufacturer:

Everspin Technologies Inc.

Package:

32-SOIC (0.295, 7.50mm Width)

Description:

3.3V V 32 Pin Memory IC 20.726mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MR256A08BCSO35R information

Everspin Technologies Inc. MR256A08BCSO35R technical specifications, attributes, parameters and parts with similar specifications to Everspin Technologies Inc. MR256A08BCSO35R.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
32-SOIC (0.295, 7.50mm Width)

Surface Mount
YES

Number of Pins
32

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2013

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Max Power Dissipation
600mW

Technology
MRAM (Magnetoresistive RAM)

Voltage - Supply
3V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
1.25mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Memory Size
256Kb 32K x 8

Memory Type
Non-Volatile

Operating Mode
ASYNCHRONOUS

Supply Current-Max
0.075mA

Memory Format
RAM

Memory Interface
Parallel

Data Bus Width
8b

Memory Width
8

Write Cycle Time - Word, Page
35ns

Standby Current-Max
0.007A

Memory Density
262144 bit

Access Time (Max)
35 ns

Length
20.726mm

Height Seated (Max)
2.286mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Everspin Technologies Inc. MR256A08BCSO35R.

Datasheets:

everspintechnologiesinc-mr256a08bys35-datasheets-3723.pdf

MR256A08BCSO35R Overview

Non-Volatile is its memory type. It is available in a case with a Tape & Reel (TR) shape. As you can see, it is embedded in 32-SOIC (0.295, 7.50mm Width) case. There is an 256Kb 32K x 8 memory capacity on the chip. In this device, the memory is of the RAM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 3V~3.6V is possible to be applied to the supply. There is a recommendation that Surface Mount mounting type should be used for this product. As you can see from the diagram, the chip is planted with 32 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 3.3V power supply. It is encased in an 32-pin package that contains this ic memory chip. It has 32 pins indicating it has 32 memory locations. This memory chip requires a mere 3.3V of power. This memory ics is capable of operating with an input current of 0.075mA at max.

MR256A08BCSO35R Features

Package / Case: 32-SOIC (0.295, 7.50mm Width)
32 Pins

MR256A08BCSO35R Applications

There are a lot of Everspin Technologies Inc.
MR256A08BCSO35R Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
