NXP MPXAZ6115AC6T1
NXP MPXAZ6115AC6T1

NXP MPXAZ6115AC6T1

Manufacturer No:

MPXAZ6115AC6T1

Manufacturer:

NXP

Package:

8-SMD, Gull Wing, Top Port

Description:

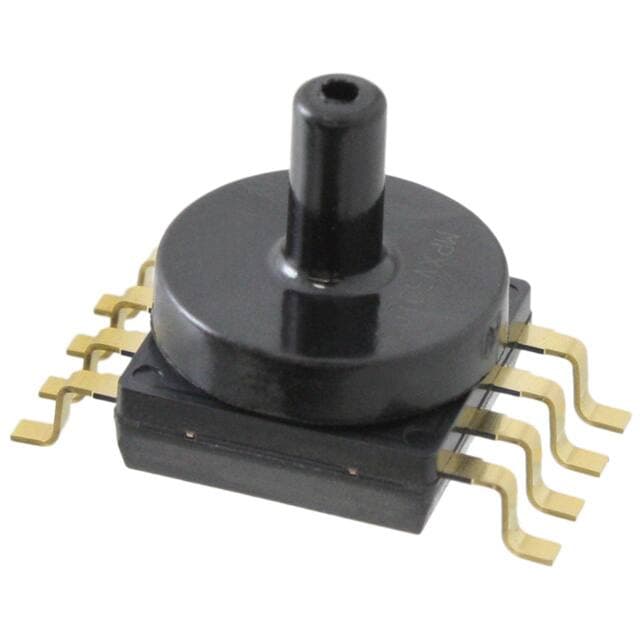

MPXAZ6115A Series Absolute Pressure Sensor Analog Voltage -40°C~125°C 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) Barbless ±1.5% 0.2 V ~ 4.7 V 4.75V~5.25V Temperature Compensated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPXAZ6115AC6T1 information

NXP MPXAZ6115AC6T1 technical specifications, attributes, parameters and parts with similar specifications to NXP MPXAZ6115AC6T1.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Package / Case
  • 8-SMD, Gull Wing, Top Port
  • Surface Mount
  • YES
  • Mounting Feature
  • SURFACE MOUNT
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • MPXAZ6115A
  • Published
  • 2004
  • Feature
  • Temperature Compensated
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • ECCN Code
  • EAR99
  • Applications
  • Board Mount
  • HTS Code
  • 8542.39.00.01
  • Voltage - Supply
  • 4.75V~5.25V
  • Output
  • 0.2 V ~ 4.7 V
  • Termination Style
  • Gull Wing
  • Body Length or Diameter
  • 10.66mm
  • Body Breadth
  • 10.66 mm
  • Output Type
  • Analog Voltage
  • Accuracy
  • ±1.5%
  • Response Time
  • 1000 µs
  • Operating Pressure
  • 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa)
  • Pressure Type
  • Absolute
  • Port Size
  • Male - 0.13 3.17mm Tube
  • Linearity
  • 1.5 %
  • Maximum Pressure
  • 58.02PSI (400kPa)
  • Sensors/Transducers Type
  • PRESSURE SENSOR,PEIZORESISTIVE
  • Housing
  • PLASTIC
  • Pressure Range-Max
  • 16.7 Psi
  • Offset-Nom
  • 0.20V
  • Sensitivity (mV/V)
  • 45.9 mV/V
  • Body Height
  • 12.95mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP MPXAZ6115AC6T1.

Datasheets:

Environmental Information:

MPXAZ6115AC6T1 Overview


For convenience, this transducer is included in the 8-SMD, Gull Wing, Top Port package. The temperature of the transducers should be set to -40°C~125°C to ensure reliable performance. The transducers can operate well with a supply voltage of 4.75V~5.25V. The maximum pressure range set by this transducer is 16.7 Psi. This electronic component comes in the package of a Tape & Reel (TR).

MPXAZ6115AC6T1 Features


Moisture Sensitivity Level: Not Applicable
Package / Case: 8-SMD, Gull Wing, Top Port
Operating Temperature: -40°C~125°C
MPXAZ6115A series
Sensitivity (mV/V): 45.9 mV/V
Operating Pressure: 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa)


MPXAZ6115AC6T1 Applications


There are a lot of NXP USA Inc.
MPXAZ6115AC6T1 Transducers applications.


  • General Purpose
  • Process Control
  • Altitude Control of Drones and Flying Toys
  • Mobile Phones
  • Virtual Reality and Gaming Equipment
  • Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
  • Vertical velocity monitoring
  • Leisure, Sports, and Fitness Activity Identification
  • Weather Forecasting
  • Hydrogen Storage
