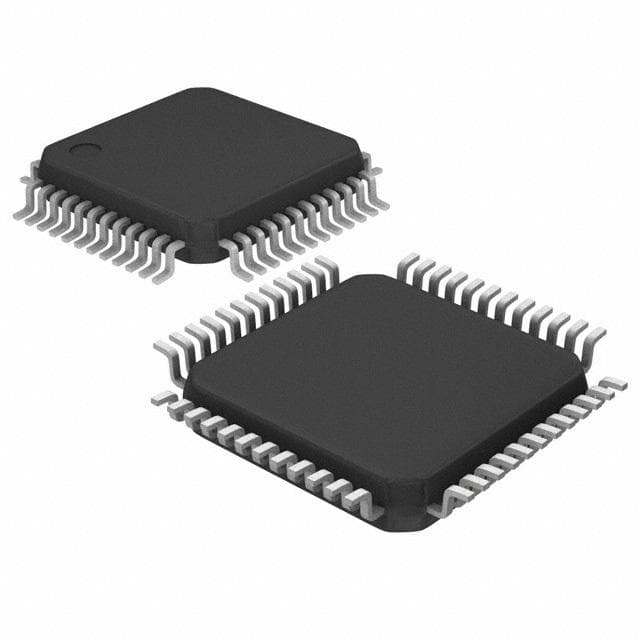

Renesas MPC9600AE

Manufacturer No:

MPC9600AE

Manufacturer:

Renesas

Package:

TQFP

Description:

2.5V 200MHz Clock Generators 48 Pins TQFP 48 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPC9600AE information

Renesas MPC9600AE technical specifications, attributes, parameters and parts with similar specifications to Renesas MPC9600AE.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
48

Published
2001

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATE AT 3.3V SUPPLY

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Pin Count
48

Power Supplies
2.5/3.3V

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Min Supply Voltage
2.375V

Nominal Supply Current
5mA

Frequency (Max)
200MHz

Family
9600

Output Characteristics
3-STATE

Input
LVCMOS

Logic IC Type
PLL BASED CLOCK DRIVER

Prop. Delay@Nom-Sup
0.23 ns

Number of True Outputs
21

Length
7mm

Width
7mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas MPC9600AE.

Datasheets:

integrateddevicetechnology-mpc9600ae-datasheets-7471.pdf

MPC9600AE Overview

The TQFP package contains this clock generator. This clock generator ic can sustain a maximum temperature of 260 during reflowing. It contains 48 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 2.5V. The input of this clock generator is designed to be LVCMOS. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 200MHz Max with this clock-based frequency generator. The clock-generating IC is a 48-bit device designed specifically for microprocessors. It is possible to connect to the frequency generators via 48 pins. Despite its low-temperature operation, this clock generator ic is capable of -40°C operations. Despite its attenuated performance, this frequency synthesizer can last at 85°C. This clock generator can be classified as a kind of Clock Drivers in general. This clock PLL features ALSO OPERATE AT 3.3V SUPPLY for better clock signal output. 21 high true output enable pins are available on this clock generator. When searching for parts of the 9600 family, similar frequency generators will be found. It is unacceptable to supply this clock PLL with a voltage higher than 3.465V. There is a maximum supply voltage of 2.375V for this RF synthesizer. Logic circuits based on PLL BASED CLOCK DRIVER logic use this electronic frequency generator.

MPC9600AE Features

Available in the TQFP
Supply voltage of 2.5V
21 true outputs

MPC9600AE Applications

There are a lot of Integrated Device Technology (IDT)
MPC9600AE Clock Generators applications.

Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
