Renesas MPC9449AER2
Renesas MPC9449AER2

Renesas MPC9449AER2

Manufacturer No:

MPC9449AER2

Manufacturer:

Renesas

Package:

LQFP

Description:

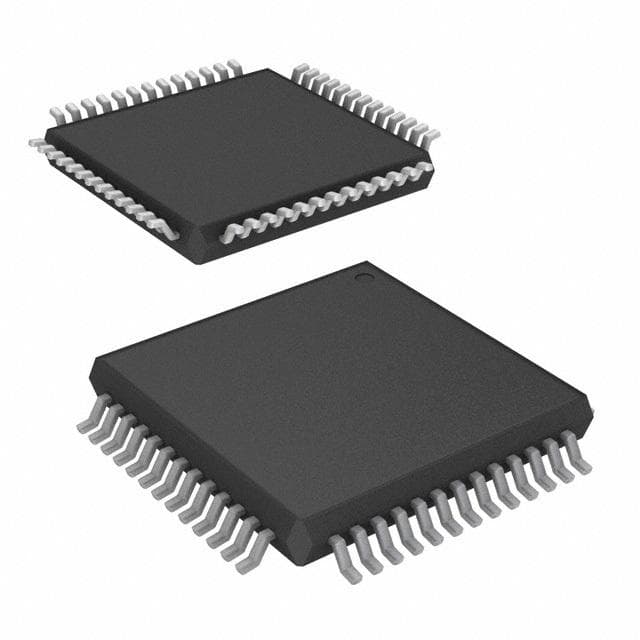

1 Circuit 200MHz 2.5V Clock Buffer QUAD 52 Pins LQFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPC9449AER2 information

Renesas MPC9449AER2 technical specifications, attributes, parameters and parts with similar specifications to Renesas MPC9449AER2.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • LQFP
  • Number of Pins
  • 52
  • Packaging
  • Tape & Reel
  • Published
  • 2004
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 52
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Additional Feature
  • ALSO OPERATE AT 3.3V SUPPLY
  • Subcategory
  • Clock Drivers
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 2.5V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 52
  • Power Supplies
  • 2.5/3.3V
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 3.465V
  • Min Supply Voltage
  • 2.375V
  • Quiescent Current
  • 10mA
  • Frequency (Max)
  • 200MHz
  • Family
  • 9449
  • Output Characteristics
  • 3-STATE
  • Input
  • LVCMOS
  • Logic IC Type
  • LOW SKEW CLOCK DRIVER
  • Max I(ol)
  • 0.024 A
  • Prop. Delay@Nom-Sup
  • 7 ns
  • Propagation Delay (tpd)
  • 7 ns
  • Same Edge Skew-Max (tskwd)
  • 0.3 ns
  • Number of True Outputs
  • 15
  • Length
  • 10mm
  • Width
  • 10mm
  • Thickness
  • 1.4mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Renesas MPC9449AER2.

Datasheets:

MPC9449AER2 Overview


A LQFP case is used for packaging. A Tape & Reel is used to package it. Under normal circumstances, 200MHz is the maximum value. In it, there are 52 terminations. Supply voltages of 2.5V allow for high efficiency. In the direction of Surface Mount, it is placed. There are 52 pins on timeing clock. Operation is performed with 52 pins. It is contained in Clock Drivers. A minimum temperature of -40°C is required for reliability. By operating at 85°C degrees Celsius, stable operation is enabled. A member of the 9449 family, this gadget is a timeing clock. LOW SKEW CLOCK DRIVER is the value of the logic IC used in this circuit. There is a voltage supply of 2.5/3.3V volts for powering it. It is possible to get 15 true outputs. The maximum supply voltage is 3.465VV. This IC dividers can operate with a voltage source of 2.375V as low as possible. In addition, ALSO OPERATE AT 3.3V SUPPLY can be obtained when using this gadget. There is no external influence on it, as it consumes 10mA quiescent current.
