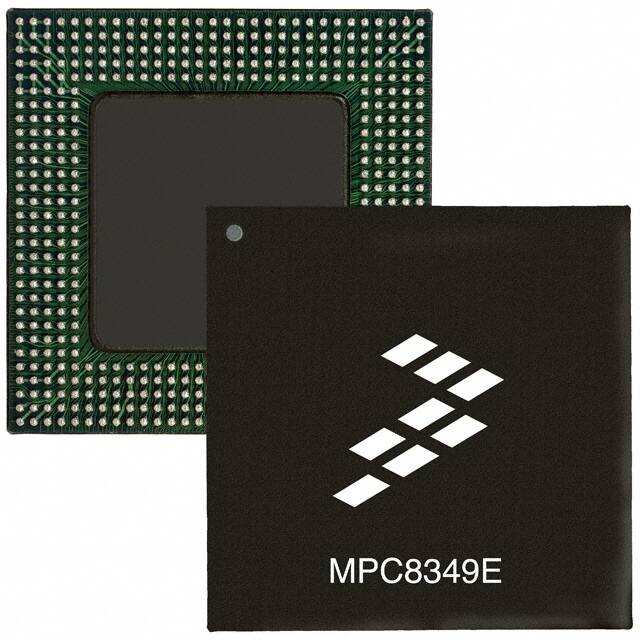

NXP MPC8349EVVAJFB

Manufacturer No:

MPC8349EVVAJFB

Manufacturer:

NXP

Package:

672-LBGA

Description:

1mm PowerPC e300 1.22.5/3.3V 32-bit Microprocessor MPC83xx Series MPC8349 1.2V 672-LBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPC8349EVVAJFB information

NXP MPC8349EVVAJFB technical specifications, attributes, parameters and parts with similar specifications to NXP MPC8349EVVAJFB.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
672-LBGA

Surface Mount
YES

Operating Temperature
0°C~105°C TA

Packaging
Tray

Series
MPC83xx

Published
2002

JESD-609 Code
e2

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
672

ECCN Code
5A002.A.1

Terminal Finish
TIN COPPER/TIN SILVER

HTS Code
8542.31.00.01

Subcategory
Microprocessors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.2V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
MPC8349

JESD-30 Code
S-PBGA-B672

Power Supplies
1.22.5/3.3V

Supply Voltage-Min (Vsup)
1.14V

Speed
533MHz

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR

Core Processor
PowerPC e300

Clock Frequency
66MHz

Bit Size
32

Address Bus Width
32

Boundary Scan
YES

Low Power Mode
YES

External Data Bus Width
32

Format
FLOATING POINT

Integrated Cache
YES

Voltage - I/O
1.8V 2.5V 3.3V

Ethernet
10/100/1000Mbps (2)

Number of Cores/Bus Width
1 Core 32-Bit

Graphics Acceleration
No

RAM Controllers
DDR, DDR2

USB
USB 2.0 + PHY (2)

Additional Interfaces
DUART, I2C, PCI, SPI

Co-Processors/DSP
Security; SEC

Security Features
Cryptography, Random Number Generator

Length
35mm

Download datasheets and manufacturer documentation for NXP MPC8349EVVAJFB.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

MPC8349EVVAJFB Overview

The embedded microprocessor has been packed in 672-LBGA for convenient overseas shipping. Using advanced packaging techniques Tray, high reliability is ensured. A CPU with 1 Core 32-Bit cores and width 1 Core 32-Bit busses is used. Understand how the operating temperature around 0°C~105°C TA is determined. This is a member of the MPC83xx series. With a core count of PowerPC e300, this CPU is multicore. A CPU with this architecture uses DDR, DDR2 RAM controllers. With its DUART, I2C, PCI, SPI interfaces, this microprocessor will be able to serve you better. The CPU runs at 1.8V 2.5V 3.3V when it comes to I/O. uPs/uCs/Peripheral ICs type is MICROPROCESSOR. Use MPC8349 when searching for variants of the embedded microprocessor. Overall, there are 672 terminations. The microprocessor should be turned on and run with a voltage supply of 1.2V volts. This microprocessor has an architecture of 32 bits. There is a maximum supply current of 1.26V in this microprocessor. An example of a Microprocessors microprocessor can be found here. Its external data bus width is 32. CPU microprocessor clock frequency is 66MHz. The datasheet specifies that this CPU microprocessor requires 1.22.5/3.3V power supply.

MPC8349EVVAJFB Features

PowerPC e300 Core
32-Bit Structure

MPC8349EVVAJFB Applications

There are a lot of NXP USA Inc.
MPC8349EVVAJFB Microprocessor applications.

Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
