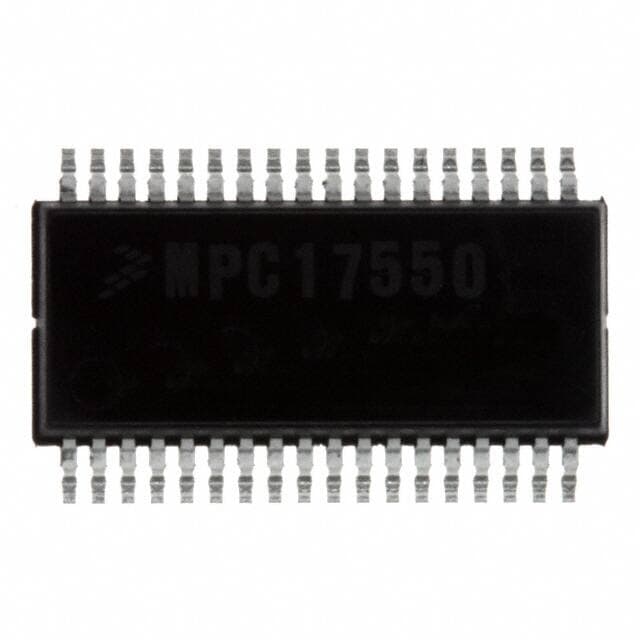

NXP MPC17550EV

Manufacturer No:

MPC17550EV

Manufacturer:

NXP

Package:

36-SSOP (0.209, 5.30mm Width)

Description:

5.3mm mm Motor Drivers 36 3V V 12.6mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPC17550EV information

NXP MPC17550EV technical specifications, attributes, parameters and parts with similar specifications to NXP MPC17550EV.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
36-SSOP (0.209, 5.30mm Width)

Surface Mount
YES

Operating Temperature
-10°C~150°C TJ

Packaging
Tube

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
36

Applications
Battery Powered

Technology
Power MOSFET

Voltage - Supply
2.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Supply Voltage
3V

Terminal Pitch
0.65mm

Base Part Number
MPC17550

JESD-30 Code
R-PDSO-G36

Function
Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.5V

Interface
Parallel

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Output Configuration
Half Bridge (8)

Supply Current-Max (Isup)
25mA

Voltage - Load
1.6V~5.5V

Motor Type - AC, DC
Brushed DC

Motor Type - Stepper
Bipolar

Length
12.6mm

Height Seated (Max)
2.1mm

Width
5.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MPC17550EV.

Datasheets:

nxpusainc-mpc17550evel-datasheets-1941.pdf

MPC17550EV Overview

This package was designed with Tubein mind.36-SSOP (0.209, 5.30mm Width)cases are included with the part.The part should be mounted by Surface Mount.I believe it is suitable for the component connected to Battery Powered.There is a capability for the device to provide 2.5V~5.5V volts.This device operates at a temperature of -10°C~150°C TJ.Drivers controllers is possible to classify the motor type as Brushed DC.This part provides 36terminations.If the voltage is applied to the load at the rate of [0], the load will be affected.I would like to remind you that this amplifier should be operated at 3V.Drivers controllers is recommended to keep the part output current at 700mA.This device utilizes the STEPPER MOTOR CONTROLLERanalog integrated circuit.The MPC17550part number allows us to locate it.

MPC17550EV Features

Applications : Battery Powered
Load voltage across the chip 1.6V~5.5V
base on MPC17550 number

MPC17550EV Applications

There are a lot of NXP USA Inc.
MPC17550EV motor drivers applications.

Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
Turn signals
Brake lights
