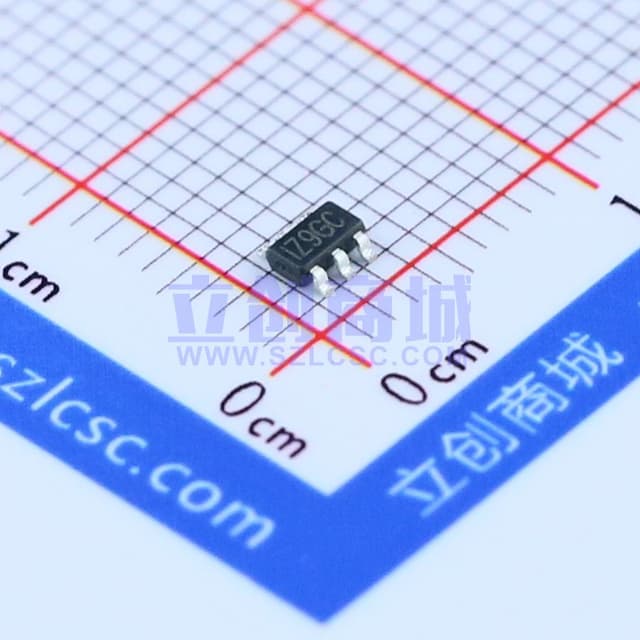

MPS MP1488DJ-LF-Z

Manufacturer No:

MP1488DJ-LF-Z

Manufacturer:

MPS

Package:

Description:

LED Driver, PDSO6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MP1488DJ-LF-Z information

MPS MP1488DJ-LF-Z technical specifications, attributes, parameters and parts with similar specifications to MPS MP1488DJ-LF-Z.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
MONOLITHIC POWER SYSTEMS INC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
24 Weeks

Samacsys Manufacturer
Monolithic Power Systems (MPS)

Interface IC Type
LED DISPLAY DRIVER

JESD-30 Code
R-PDSO-G6

JESD-609 Code
e3

Moisture Sensitivity Level
1

Number of Terminals
6

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
TSOP

Package Equivalence Code
TSOP6,.11,37

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE, THIN PROFILE

Qualification Status
Not Qualified

Supply Voltage-Nom
5 V

Surface Mount
YES

Temperature Grade
INDUSTRIAL

Terminal Form
GULL WING

Terminal Pitch
0.95 mm

Terminal Position
DUAL

Download datasheets and manufacturer documentation for MPS MP1488DJ-LF-Z.

Datasheets:

MONO-S-A0011265435-1.pdf

Product Description:

The MP1488DJ-LF-Z is a high-performance, industrial-grade LED driver IC from Monolithic Power Systems. This surface-mount device is designed to provide a reliable and efficient power supply for LED displays and other applications. With its boost topology and frequency switching capability, the MP1488DJ-LF-Z offers a high level of flexibility and customization.

Features:

Frequency switching up to 1.3MHz for high efficiency and low noise
Boost topology for high output voltage and current
Single-channel design with 6 terminations for easy connection
Nominal input voltage of 5V with a minimum input voltage of 2.5V and maximum input voltage of 6V
Maximum output current of 180mA and maximum output voltage of 25V
Operating temperature range of -40°C to 85°C
RoHS compliant and qualified for industrial applications

Applications:

Primary applications: LED displays, backlighting, and general lighting
Secondary applications: Automotive lighting, industrial control systems, and medical devices

Alternative Parts:

MP1487DJ-LF-Z: Similar LED driver IC with a different package and pinout
MP1489DJ-LF-Z: Higher-power LED driver IC with increased output current and voltage

Embedded Modules:

LED display modules for automotive and industrial applications
Backlighting modules for smartphones and tablets
General lighting modules for residential and commercial use

FAQs:

Q: What is the maximum output current of the MP1488DJ-LF-Z? A: The maximum output current is 180mA.

Q: What is the maximum output voltage of the MP1488DJ-LF-Z? A: The maximum output voltage is 25V.

Q: What is the operating temperature range of the MP1488DJ-LF-Z? A: The operating temperature range is -40°C to 85°C.

Q: Is the MP1488DJ-LF-Z RoHS compliant? A: Yes, the MP1488DJ-LF-Z is RoHS compliant.

Q: What is the frequency switching capability of the MP1488DJ-LF-Z? A: The frequency switching capability is up to 1.3MHz.

Q: What is the package type of the MP1488DJ-LF-Z? A: The package type is a surface-mount GULL WING package with a terminal pitch of 0.95mm and a terminal position of DUAL.
