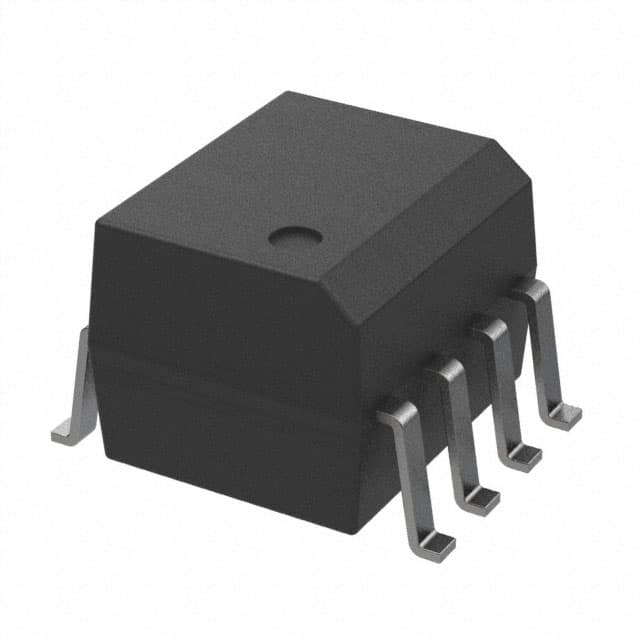

ONSEMI MOCD207R2M

Manufacturer No:

MOCD207R2M

Manufacturer:

ONSEMI

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

8-pin SOIC Dual-Channel Phototransistor Output Optocoupler

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MOCD207R2M information

ONSEMI MOCD207R2M technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MOCD207R2M.

Type
Parameter

CTR (Max) (%)
200

VISO (Min) (V)
2500

MSL Temp (°C)
260

Channels
2

CTR tested @ IF (mA)
10

VCE(sat) (Max) (V)
0.4

toff (Max) (µs)
2.8

TOPR (Max) (°C)
100

Package Type
SOIC-8

CTR (Min) (%)
100

ton (Max) (µs)
3

Case Outline
751DZ

BVECO (Min) (V)
7

Container Qty.
2500

BVCEO (Min) (V)
70

BVCBO (Min) (V)
-

TOPR (Min) (°C)
-40

MSL Type
1

Container Type
REEL

Download datasheets and manufacturer documentation for ONSEMI MOCD207R2M.

Datasheet:

5e8acba1dabdcac7dd31505f73451805.pdf

Package Drawing:

a75ba8d4a33dd666360104d75caa3df6.pdf

The MOCD207M device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline plastic package. It is ideally suited for high density applications and eliminates the need for through-the-board mounting.

Application

Consumer Appliances
Industrial Motor

Feature

Closely Matched Current Transfer Ratios
Minimum BV_CEOof 70 V Guaranteed
MOCD207M, MOCD208M
Minimum BV_CEO of 30 V Guaranteed
MOCD211M, MOCD213M, MOCD217M
Low LED Input Current Required for Easier Logic Interfacing
MOCD217M
Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing
Safety and Regulatory Approvals:
UL1577, 2,500 VAC_RMS for 1 Minute
DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage
