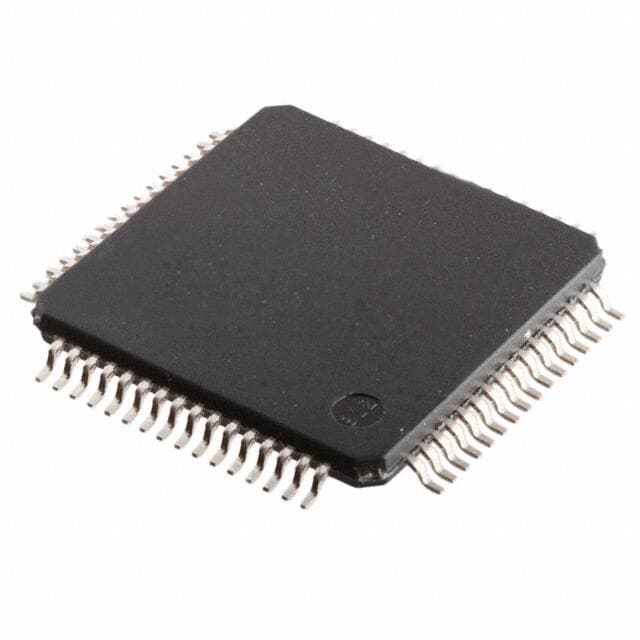

PANASONIC MN101LR05DXW

Manufacturer No:

MN101LR05DXW

Manufacturer:

PANASONIC

Package:

80-TQFP

Description:

64KB 64K x 8 ReRAM AM13L 8-Bit Microcontroller MN101L Series MN101LR 80 Pin 10MHz 80-TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MN101LR05DXW information

PANASONIC MN101LR05DXW technical specifications, attributes, parameters and parts with similar specifications to PANASONIC MN101LR05DXW.

Type
Parameter

Factory Lead Time
23 Weeks

Mounting Type
Surface Mount

Package / Case
80-TQFP

Number of Pins
80

Supplier Device Package
80-TQFP (12x12)

Weight
513.60831mg

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
MN101L

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Frequency
10MHz

Base Part Number
MN101LR

Interface
I2C, SPI, UART, USART

Max Supply Voltage
3.6V

Min Supply Voltage
1.8V

Memory Size
64kB

Oscillator Type
Internal

Number of I/O
69

Speed
10MHz

RAM Size
4K x 8

Voltage - Supply (Vcc/Vdd)
1.8V~3.6V

Peripherals
DMA, LCD, LVD, POR, PWM, WDT

Program Memory Type
ReRAM

Core Size
8-Bit

Program Memory Size
64KB 64K x 8

Connectivity
I2C, UART/USART

Data Converter
A/D 8x12b

Data Bus Width
8b

Number of Timers/Counters
1

Max Frequency
10MHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for PANASONIC MN101LR05DXW.

Datasheets:

panasonicelectroniccomponents-mn101lr04dxw-datasheets-0043.pdf

MN101LR05DXW Overview

There is a 80-TQFP package available. The board has 69 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is ReRAM. -40°C~85°C TA is the temperature range at which this Microcontroller operates. MN101L-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 64KB 64K x 8. Powered by a AM13L Core processor. This IC part has a memory size of 64kB. There are a number of alternatives to the base part number MN101LR that you can find. Performing well when operated at frequency 10MHz can be achieved. On the chip, there are 80 pins that can be accessed. It comes with 1 timers/counters that can be set up.
