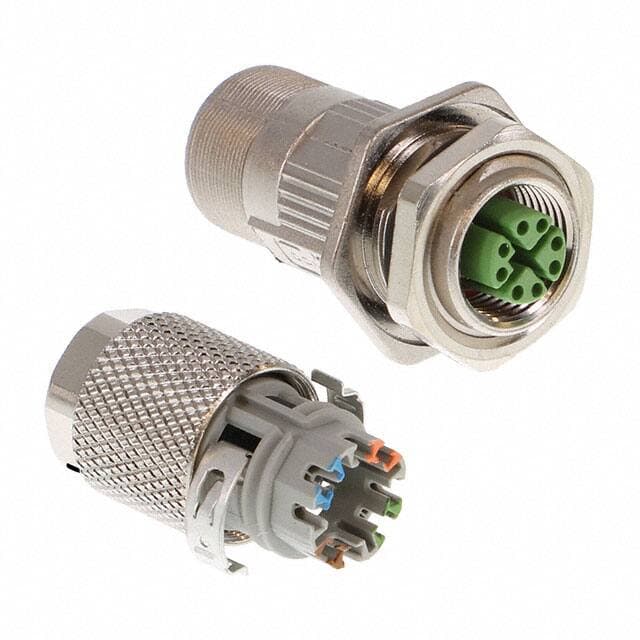

METZ CONNECT USA Inc. MMF881A315-0001

Manufacturer No:

MMF881A315-0001

Manufacturer:

Package:

Description:

Jack, Female Sockets Zinc Die Cast Free Hanging (In-Line); Panel Mount 8 Positions IDC Nickel-Gold Nickel Bulk X Threaded

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MMF881A315-0001 information

METZ CONNECT USA Inc. MMF881A315-0001 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. MMF881A315-0001.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Brass

Contact Plating
Gold

Mounting Type
Free Hanging (In-Line); Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Shell Material
Zinc Die Cast

Insert Material
Polyamide (PA), Nylon

Body Material
Zinc

Backshell Material, Plating
Zinc Die Cast, Nickel

Operating Temperature
-40°C~85°C

Packaging
Bulk

JESD-609 Code
e4

Feature
Backshell

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
IDC

Connector Type
Jack, Female Sockets

Number of Positions
8

Color
Silver

Applications
Railway

Gender
Receptacle

Voltage - Rated
50VAC 60VDC

Additional Feature
STANDARD: IEC 61076-2-109

Fastening Type
Threaded

Contact Finish - Mating
Nickel-Gold

MIL Conformance
NO

DIN Conformance
YES

IEC Conformance
YES

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
0.5A

Total Number of Contacts
8

Orientation
X

Shielding
Shielded

Ingress Protection
IP67 - Dust Tight, Waterproof

Current Rating
500mA

Shell Finish
Nickel

Shell Size - Insert
M12-8

Empty Shell
NO

Backshell Type
SOLID

Environmental Characteristics
ENVIRONMENT/IMMERSION RESISTANT

Cable Opening
0.197 ~ 0.382 (5.00mm ~ 9.70mm)

Material Flammability Rating
UL94 V-0

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. MMF881A315-0001.

MMF881A315-0001 Overview

The packaging contains Jack, Female Sockets.There is a Free Hanging (In-Line); Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Further, there are features such as STANDARD: IEC 61076-2-109, to name only a few.In many ways, it is more powerful due to its Backshell feature.This device operates at a temperature of -40°C~85°C.

MMF881A315-0001 Features

MMF881A315-0001 Applications

There are a lot of METZ CONNECT USA Inc.
MMF881A315-0001 Circular Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
