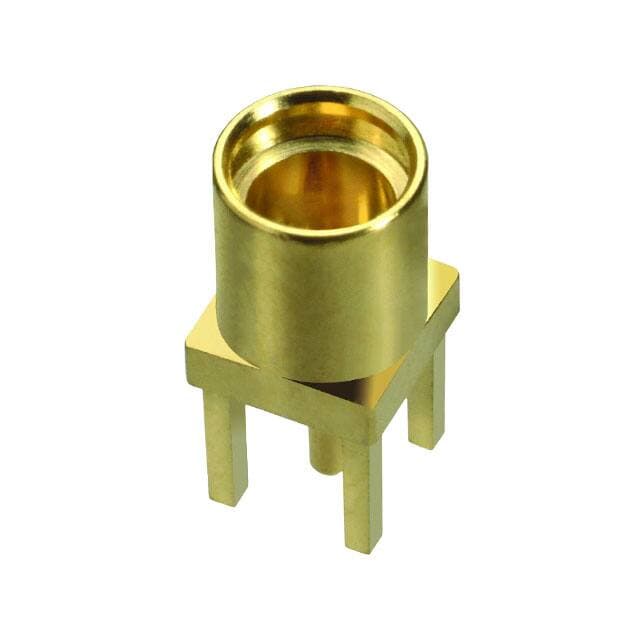

Harwin MMCX-3005

Manufacturer No:

MMCX-3005

Manufacturer:

Harwin

Package:

Description:

Jack, Female Socket Snap-On 50Ohm Bulk MMCX Solder 1 Port Polytetrafluoroethylene (PTFE) -55°C~155°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MMCX-3005 information

Harwin MMCX-3005 technical specifications, attributes, parameters and parts with similar specifications to Harwin MMCX-3005.

Type
Parameter

Contact Material
Copper

Mount
Through Hole

Mounting Type
Through Hole

Insulation Material
Polytetrafluoroethylene

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Center Contact Material
Beryllium Copper

Operating Temperature
-55°C~155°C

Packaging
Bulk

Published
2005

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Gender
Male

Voltage - Rated
250V

Fastening Type
Snap-On

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Total Number of Contacts
1

Orientation
Straight

Depth
3.5mm

Frequency
6Hz

Reliability
COMMERCIAL

Contact Style
COAX

Contact Resistance
5mOhm

Impedance
50Ohm

Connector Style
MMCX

Number of Ports
1

Frequency (Max)
6GHz

Mating Cycles
500

Contact Termination
Solder

Insertion Loss
0.2dB

VSWR
1.2

Length
3.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Harwin MMCX-3005.

Datasheets:

harwininc-mmcx3005-datasheets-0905.pdf

MMCX-3005 Overview

Packaging is in the form of Jack, Female Socket.The mounting type of the device is Through Hole.A Bulk case is used to package the product.There are 1 ports available for a variety of tasks to be performed on it.Through Hole represents the mounting point for the part.-55°C~155°C Operating Temperature is the default operating temperature for the device.It exhibits good efficiency when it operates at a frequency of 6Hz and it is able to operate at a high frequency.

MMCX-3005 Features

MMCX-3005 Applications

There are a lot of Harwin Inc.
MMCX-3005 Coaxial Connectors applications.

Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
Refrigeration control
