Microwave Technology Inc. MMA-121633-R5

Manufacturer No:

MMA-121633-R5

Manufacturer:

Microwave Technology Inc.

Package:

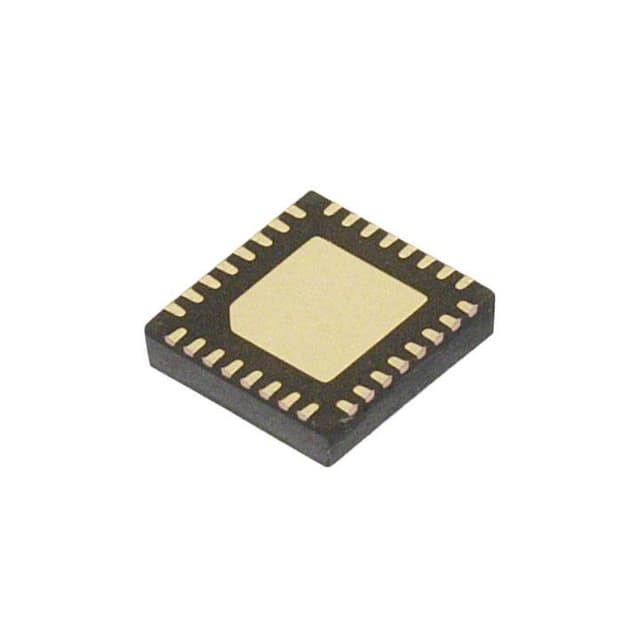

32-TFQFN Exposed Pad

Description:

23.5dB General Purpose WIDE BAND MEDIUM POWER Cut Tape (CT) 12.5GHz~15.5GHz 4V~6V P1dB:32dBm 2A Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MMA-121633-R5 information

Microwave Technology Inc. MMA-121633-R5 technical specifications, attributes, parameters and parts with similar specifications to Microwave Technology Inc. MMA-121633-R5.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
32-TFQFN Exposed Pad

Packaging
Cut Tape (CT)

Published
2011

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Voltage - Supply
4V~6V

Frequency
12.5GHz~15.5GHz

Operating Supply Current
2A

Gain
23.5dB

RF/Microwave Device Type
WIDE BAND MEDIUM POWER

RF Type
General Purpose

P1dB
32dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microwave Technology Inc. MMA-121633-R5.

MMA-121633-R5 Overview

An RF amplifier with a cost-effective WIDE BAND MEDIUM POWER RF/Microwave device type.General Purpose RF Type from the RF Amplifier.High reliability is provided by the advanced RF Amp' packaging Cut Tape (CT).The RF power Amplifier is conveniently packaged in 32-TFQFN Exposed Pad, making it easy to ship internationally.mount Amplifiers RF in the direction of Surface Mount.4V~6V voltage can be supplied by the Amplifiers RF.The supply current must be operated at 2A in order to deliver its performance.

MMA-121633-R5 Features

WIDE BAND MEDIUM POWER RF/Microwave Amplifier
RF Type General Purpose
4V~6V voltage

MMA-121633-R5 Applications

There are a lot of Microwave Technology Inc.
MMA-121633-R5 RF Amplifiers applications.

Telematics (Asset Tracking and Management)
Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
