Microwave Technology Inc. MLA-01122B-C4

Manufacturer No:

MLA-01122B-C4

Manufacturer:

Microwave Technology Inc.

Package:

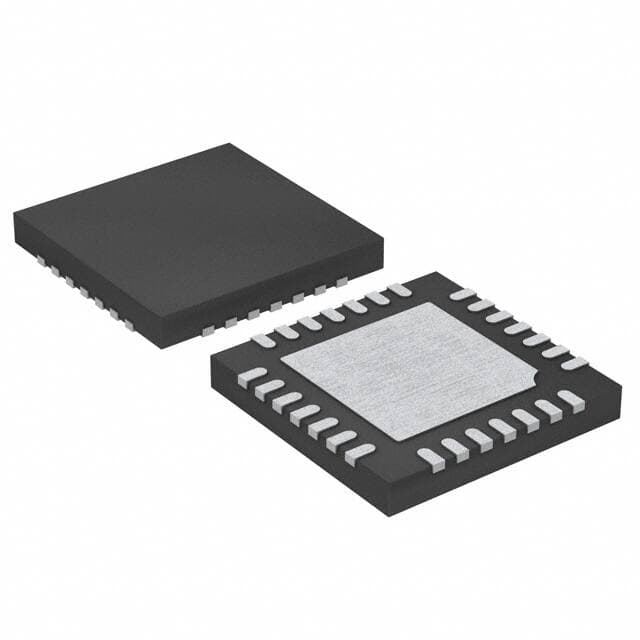

24-UFQFN Exposed Pad

Description:

19dB General Purpose WIDE BAND LOW POWER Cut Tape (CT) 1GHz~12GHz 5V P1dB:13dBm 1.9dB 55mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MLA-01122B-C4 information

Microwave Technology Inc. MLA-01122B-C4 technical specifications, attributes, parameters and parts with similar specifications to Microwave Technology Inc. MLA-01122B-C4.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
24-UFQFN Exposed Pad

Packaging
Cut Tape (CT)

Published
2005

JESD-609 Code
e4

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Terminal Finish
Gold (Au)

Voltage - Supply
5V

Construction
COMPONENT

Frequency
1GHz~12GHz

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Test Frequency
12GHz

Operating Supply Current
55mA

Gain
19dB

RF/Microwave Device Type
WIDE BAND LOW POWER

RF Type
General Purpose

Input Power-Max (CW)
13dBm

Characteristic Impedance
50Ohm

Noise Figure
1.9dB

P1dB
13dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microwave Technology Inc. MLA-01122B-C4.

MLA-01122B-C4 Overview

RF Amplifier with cost-effective WIDE BAND LOW POWER RF/Microwave Device Type.An RF amplifier with the General Purpose RF type.High reliability can be achieved by using the advanced RF Amp' packaging Cut Tape (CT).Due to its 24-UFQFN Exposed Pad packaging, it is convenient to ship overseas.Surface Mount is the recommended mount Amplifiers RF direction.Amplifiers RFs that can supply 5V volts are available.In order to perform at its best, the supply current needs to be operated at 55mA.

MLA-01122B-C4 Features

WIDE BAND LOW POWER RF/Microwave Amplifier
RF Type General Purpose
5V voltage

MLA-01122B-C4 Applications

There are a lot of Microwave Technology Inc.
MLA-01122B-C4 RF Amplifiers applications.

Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
Wireless infrastructure
