Manufacturer No:

MKS20FN256VFT12

Manufacturer:

NXP

Package:

48-VFQFN Exposed Pad

Description:

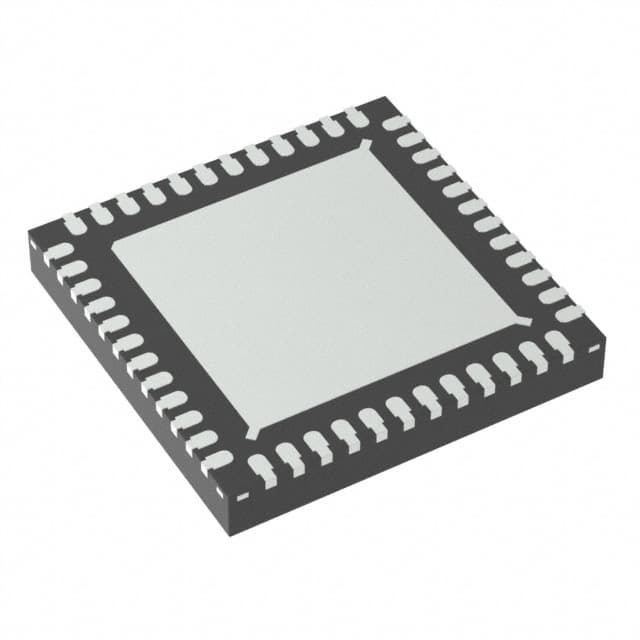

256KB 256K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller Kinetis KS22 Series 3.3V 48-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MKS20FN256VFT12 information

NXP MKS20FN256VFT12 technical specifications, attributes, parameters and parts with similar specifications to NXP MKS20FN256VFT12.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 48-VFQFN Exposed Pad
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~105°C TA
  • Packaging
  • Tray
  • Series
  • Kinetis KS22
  • Published
  • 2015
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 48
  • ECCN Code
  • 3A991.A.2
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Supply Voltage-Min (Vsup)
  • 1.71V
  • Oscillator Type
  • Internal
  • Number of I/O
  • 35
  • RAM Size
  • 64K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 1.71V~3.6V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • ARM® Cortex®-M4
  • Peripherals
  • Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT
  • Clock Frequency
  • 32MHz
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 256KB 256K x 8
  • Connectivity
  • CANbus, I2C, SPI, UART/USART, USB OTG
  • Bit Size
  • 32
  • Data Converter
  • A/D 1x16b; D/A 1x12b
  • Has ADC
  • YES
  • DMA Channels
  • YES
  • PWM Channels
  • YES
  • Length
  • 7mm
  • Width
  • 7mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP MKS20FN256VFT12.

Datasheets:

Environmental Information:

MKS20FN256VFT12 Overview


Packaged in a 48-VFQFN Exposed Pad format. A total of 35 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~105°C TA. A Kinetis KS22 series electrical component is used in this application. This program has a program memory of 256KB 256K x 8 bytes, which is the size of the program. With a ARM® Cortex®-M4 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 48 terminations on the IC chip, which means there are 48 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 3.3V volts. The system has YES channels for DMA communication. This MCU Chip uses YES PWM channels to operate. It runs on a 32MHz clock.

MKS20FN256VFT12 Features


48-VFQFN Exposed Pad package
Mounting type of Surface Mount


MKS20FN256VFT12 Applications


There are a lot of NXP USA Inc.
MKS20FN256VFT12 Microcontroller applications.


  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
  • Washing machine
  • Microwave ovens
  • Home appliances

User Guide
