Renesas MK5814G
Renesas MK5814G

Renesas MK5814G

Manufacturer No:

MK5814G

Manufacturer:

Renesas

Package:

TSSOP

Description:

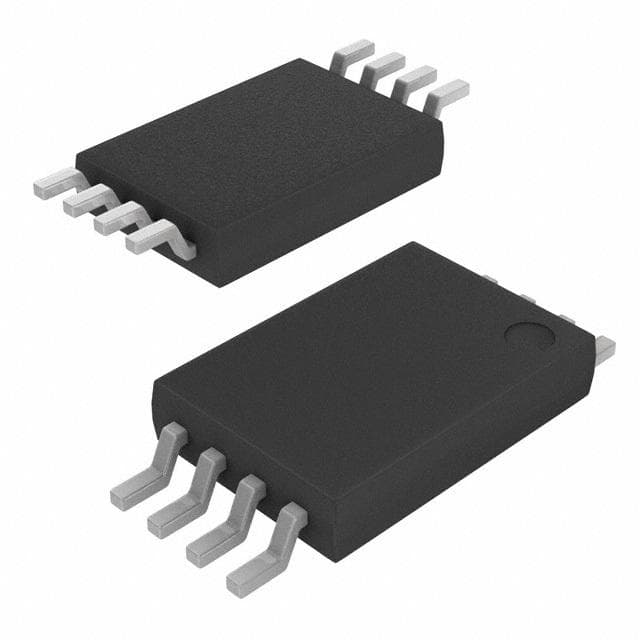

3.3V 128MHz Clock Generators TSSOP 8 Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MK5814G information

Renesas MK5814G technical specifications, attributes, parameters and parts with similar specifications to Renesas MK5814G.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • TSSOP
  • Published
  • 2009
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • 0°C
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.635mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • JESD-30 Code
  • R-PDSO-G8
  • Qualification Status
  • Not Qualified
  • Power Supplies
  • 3.3V
  • Temperature Grade
  • OTHER
  • Number of Circuits
  • 1
  • Supply Current-Max
  • 35mA
  • Input
  • Clock
  • PLL
  • Yes
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas MK5814G.

Datasheets:

MK5814G Overview


A Clock PLL is included with the TSSOP package. Frequency generator can maintain a maximum temperature of 260 under reflowing conditions. As a result of this, we can find 8 terminations. Clock generator ics require a voltage of 3.3V. As the Clock PLL's input, Clock is designed to be used in order to generate the clock signal. It is possible to access the full performance of the electrical part by implementing 1 circuits. It provides a maximum frequency of 128MHz. A frequency generator with 0°C operations has an impressive low-temperature performance. At a temperature of 85°C, the clock generator ic can operate with attenuated performance. It is possible for an element to be destroyed by thermal damage if the supply current is too high (above 35mA)

MK5814G Features


Available in the TSSOP
Supply voltage of 3.3V


MK5814G Applications


There are a lot of Integrated Device Technology (IDT)
MK5814G Clock Generators applications.


  • 10 Gigabit Ethernet
  • FPGA and processor clocks
  • Line cards used in telephone exchange
  • Fiber Channel
  • PCI express cards
  • Infotainment systems
  • Medical equipment
  • Multi-function printers
  • Media broadcast servers
  • Test equipment
