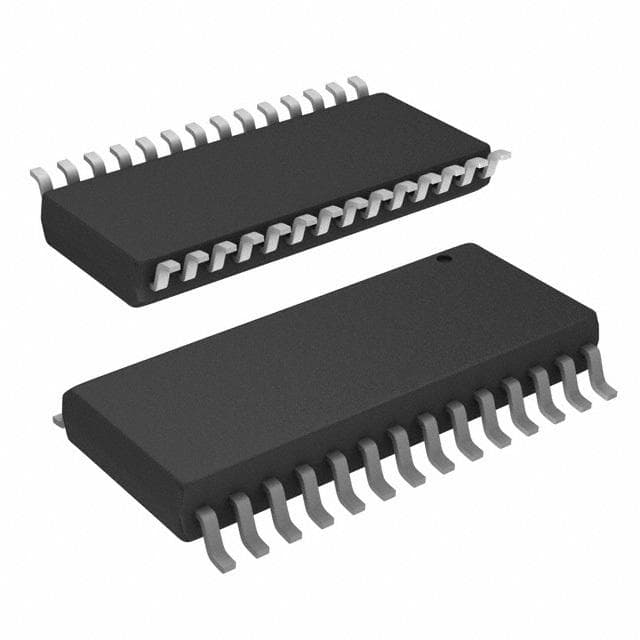

Renesas MK1491-06RLF

Manufacturer No:

MK1491-06RLF

Manufacturer:

Renesas

Package:

QSOP

Description:

3.3V V 3.8mm mm 1.5mm mm Application Specific Timer 9.9mm mm 0.635mm mm 9.9mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MK1491-06RLF information

Renesas MK1491-06RLF technical specifications, attributes, parameters and parts with similar specifications to Renesas MK1491-06RLF.

Type
Parameter

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
28

Published
1999

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Generators

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Pin Count
28

Number of Outputs
10

Operating Supply Voltage
3.3V

Temperature Grade
COMMERCIAL

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Max Supply Current
30mA

uPs/uCs/Peripheral ICs Type
CLOCK GENERATOR, PROCESSOR SPECIFIC

Frequency (Max)
49.152MHz

Input
Crystal

Primary Clock/Crystal Frequency-Nom
14.31818MHz

Height
1.5mm

Length
9.9mm

Width
3.8mm

Thickness
1.47mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas MK1491-06RLF.

Datasheets:

integrateddevicetechnology-mk149106rlf-datasheets-4955.pdf

MK1491-06RLF Overview

Clock program is contained in a package of QSOP. There are 28 terminations in it. The part provides 3.3V voltage. This part's peak reflow temperature is utilized to run 260. This device has a total of CLOCK GENERATOR, PROCESSOR SPECIFIC uPs/uCs/Peripheral IC. There are 1 on the device. The maximum frequency for normaloperation is 49.152MHz. There are 1999 publised of the part. Clock program is recommended that Clock program be mounted wClock programh Surface Mount. The device is designed with 28 pins. Circuits application includes 28 pins. This device's minimum working temperature must not be less than 0°C. The operating temperature should be less than 70°C. The supply voltage should be kept at 3.3V. The device is a part of the Clock Generators family. This device can handle 10 outputs on it. This part is employed under 3.45V in terms of the supply voltage. To maintain a supply voltage greater than 3.15V on the device.

MK1491-06RLF Features

Peak Reflow Temperature (Cel): 260
uPs/uCs/Peripheral ICs Type of CLOCK GENERATOR, PROCESSOR SPECIFIC
Include 1 Circuits
with 28 Pins
operate supply voltage at the range of 3.3V

MK1491-06RLF Applications

There are a lot of Integrated Device Technology (IDT)
MK1491-06RLF application specific timer applications.

Network Attached Storage
Multi-function Printer
Wireless Access Point
Routers
Ethernet switch/router
PCI Express 2.0/3.0
Broadcast video/audio timing
Processor and FPGA clocking
Any-frequency clock conversion
MSAN/DSLAM/PON
