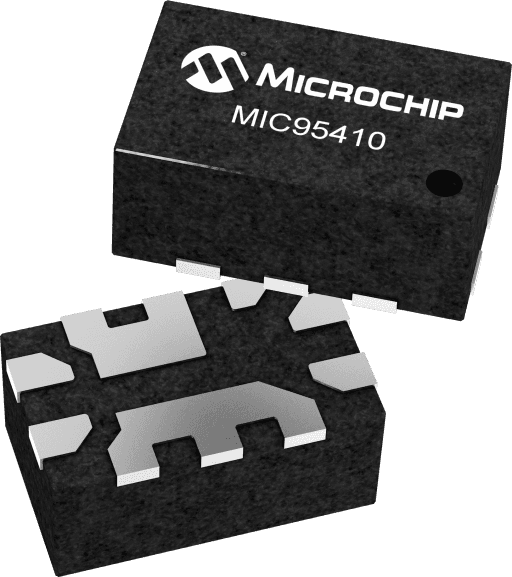

Microchip MIC95410YFL-TR

Manufacturer No:

MIC95410YFL-TR

Manufacturer:

Microchip

Package:

10-PowerVFQFN

Description:

6.6mA, 7A Load Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC95410YFL-TR information

Microchip MIC95410YFL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC95410YFL-TR.

Type
Parameter

Driver Type
Single High-Side Load Switches

Type
Single

Vin Min (V)
0.5

Vin Max (V)
5.5

Max SW Current (A)
7

RDS ON @5V (mO)
6.6

Soft Start (µS)
1100

Load Discharge(O)
2300

Enable Logic
High True

VEN (V)
2

Oja (C/W)
60

Download datasheets and manufacturer documentation for Microchip MIC95410YFL-TR.

Data Sheets:

9bbac14a1856c9dc51bb58b1d9997c1c.pdf

User Guide:

c53ab0c7ea3ace7800813b2d63c605ea.pdf

The MIC95410 is a high-side load switch for computing and ultra-dense embedded computing boards where high-current low-voltage rails from sub-1V to 5.5V have to be sectioned. The integrated 6.6mΩ RDS(ON) N-channel MOSFET ensures low voltage drop and low power dissipation while delivering up to 7A of load current. The MIC95410 is internally powered by a separated bias voltage from 2.7V to 9V. It includes a TTL-logic level to gate a voltage translator driving a charge pump, and an output discharge function when disabled. The OFF-state current from bias supply (VS) and the power switch OFF-state leakage current (IOFF) are both below 1μA. The MIC95410 provides user-adjustable slew-rate-controlled turn-on to limit the inrush current to the input supply voltage. The MIC95410 is available in a thermally efficient, space-saving 10-pin 1.2mm x 2.0mm QFN package with 0.5mm pin pitch and an operating junction temperature range from –40°C to +125°C.

Ultra-low RDS(on): 6.6mO typical
True 7A current capability
Power rail switching from sub-1V to 5.5V
Bias voltage form 2.7V to 9V
=1µA OFF-state bias supply current
=1µA OFF-state power switch leakage current
Adjustable slew rate for inrush current limiting by external capacitor
Load discharge
TTL-compatible control input
10-pin 1.2mm × 2.0mm QFN package, 0.5mm pin pitch
–40°C to +125°C junction temperature range
