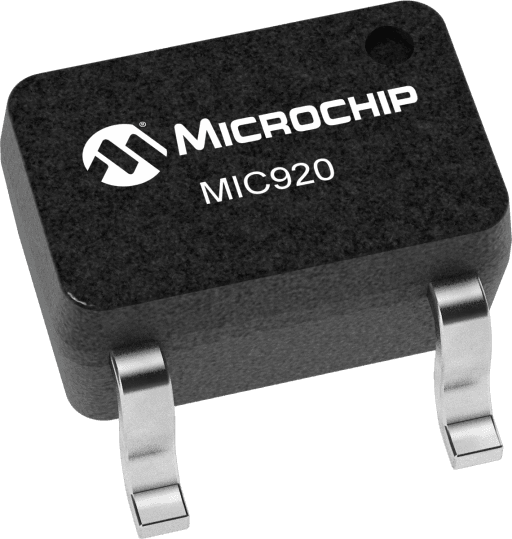

Microchip MIC920YC5-TR
Manufacturer No:
MIC920YC5-TR
Manufacturer:
Package:
5-TSSOP, SC-70-5, SOT-353
Description:
80MHz, Single Operational Amplifier
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC920YC5-TR Information
Microchip MIC920YC5-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC920YC5-TR.
- Type
- Parameter
- CMRR Min (dB)
- 60
- Enhanced EMI Protection
- No
- Gain Bandwidth Product kHz (kilohertz)
- 80000
- Iq Max (uA)
- 800
- Input Voltage Noise Density (nV/rt(Hz))
- 10
- Iq Typical (µA)
- 550
- Operating Voltage Max V (volt)
- 18
- Operating Voltage Min V (volt)
- 5.0
- PM (deg)
- 30
- PSRR Min (dB)
- 95
- Type
- Parameter
- # Per Package
- 1
- Slew Rate (V/µs)
- 3000
- Vos Max µV (microvolt)
- 5000
Download datasheets and manufacturer documentation for Microchip MIC920YC5-TR.
Application Notes:
Supporting Collateral:
Brochures:
Data Sheets:
The MIC920 is a high-speed operational amplifier with a gain-bandwidth product of 80MHz. The part is unity gain stable. It has a very low 550µA supply current, and features the SC-70 package. Supply voltage range is from ±2.5V to ±9V, allowing the MIC920 to be used in low-voltage circuits or applications requiring large dynamic range. The MIC920 is stable driving any capacitive load and achieves excellent PSRR and CMRR, making it much easier to use than most conventional high-speed devices. Low supply voltage, low power consumption, and small packing make the MIC920 ideal for portable equipment. The ability to drive capacitive loads also makes it possible to drive long coaxial cables.
