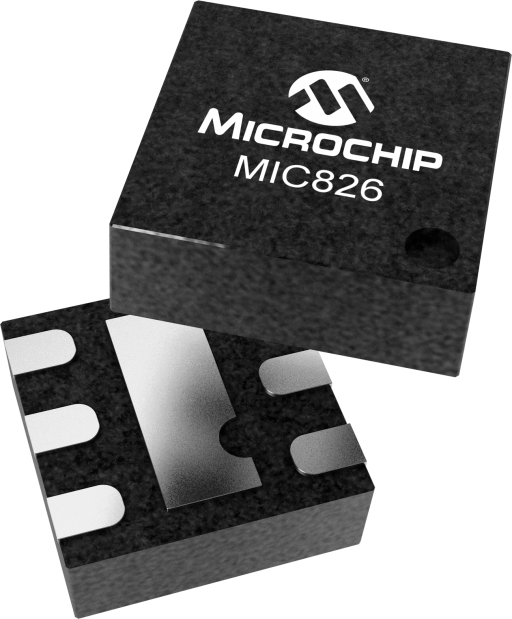

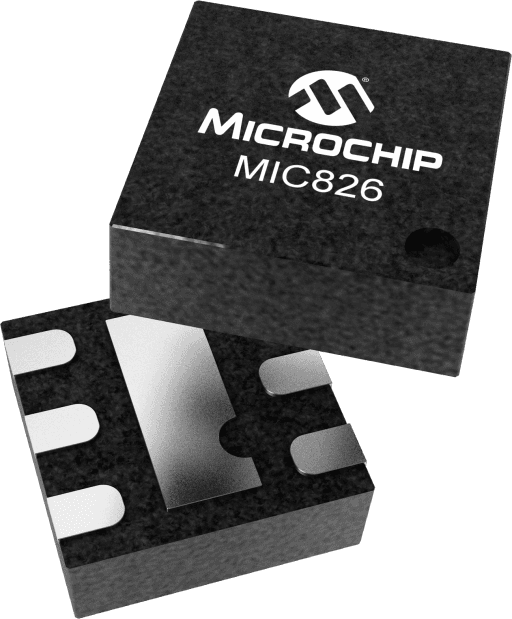

Microchip MIC826SYMT-TR

Manufacturer No:

MIC826SYMT-TR

Manufacturer:

Microchip

Package:

6-UFDFN Exposed Pad

Description:

0.5% Accuracy Single Voltage Supervisor with Manual Reset, Watchdog and Dual Out

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC826SYMT-TR information

Microchip MIC826SYMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC826SYMT-TR.

Type
Parameter

Driver Type
Supervisor

Min Operating Voltage (V)
1

Max Operating Voltage (V)
5.5

Nominal Reset Voltage Min
1.665

Nominal Reset Voltage Max
4.625

Watchdog Timer
Yes

Manual Reset
Yes

Power Fail
No

Min Operating Ambient Temperature (°C)
-40

Max Operating Ambient Temperature (°C)
125

Download datasheets and manufacturer documentation for Microchip MIC826SYMT-TR.

Data Sheets:

6a786e7c4378564d8211f2e79a0f37fb.pdf

The MIC826 is a low-current, ultra-small, voltage supervisor with manual reset input, watchdog timer, and active-high and active-low push-pull outputs. The reset outputs are asserted and held when the supply voltage falls below the factory-programmed threshold voltage, when the /MR pin is pulled low, or if the watchdog times out. Reset is asserted for the reset timeout delay after the supply voltage increases above the rising threshold voltage or when manual reset input is asserted high.

The MIC826 features an integrated pull-up resistor on the /MR. An active-low push-pull reset output (/RESET) and an active-high reset output (RESET) provide flexibility when interfacing with various microcontrollers, PMICs, or load switches. The watchdog input can be left unconnected for applications that do not require watchdog monitoring.

The MIC826 consumes a quiescent current of only 3.8μA and is offered in a tiny, space-saving, 6-pin 1.6mm x 1.6mm Thin DFN package. It is rated for the -40°C to +125°C temperature range.

Precision 1.8V to 5V power supply monitor
±0.5% threshold accuracy at TA = +25°C
±1.5% threshold accuracy from TA = -40°C to +125°C
3.8μA supply current (MIC826S/R/T/W/Y/Z)
4.8μA supply current (MIC826L/M)
Manual reset input
140ms (min.) reset timeout period
1.6s (typ.) watchdog timeout period
Float watchdog timer input to disable watchdog timer
Active-high and active-low push-pull outputs
Guaranteed reset output valid to VCC = 1V
-40°C to +125°C junction temperature range
6-pin 1.6mm x 1.6mm x 0.5mm Thin DFN package
50% smaller version of MAX823/MAX824/MAX825/ADM823/ADM824/ADM825
8x lower watchdog input current than competition

User Guide

PURCHASE
