Microchip MIC79110YML-TR

Manufacturer No:

MIC79110YML-TR

Manufacturer:

Microchip

Package:

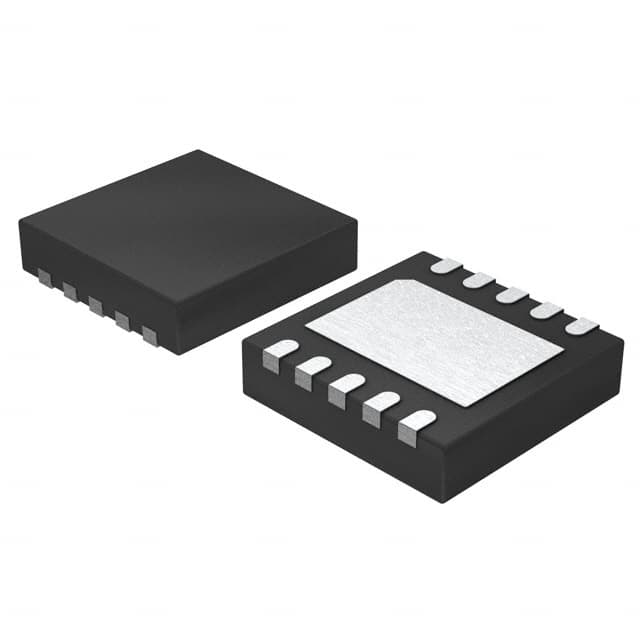

10-VFDFN Exposed Pad, 10-MLF®

Description:

1.2A Li-Ion Linear Battery Charger

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC79110YML-TR information

Microchip MIC79110YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC79110YML-TR.

Type
Parameter

Linear Mode
Yes

# of cells
1

Int/Ext FET
Yes

Vin Max (V)
16

Vin Min (V)
2.5

Voltage Regulation Accuracy (%)
0.75

Temperature Monitor
No

Charge Safety Timers
No

Download datasheets and manufacturer documentation for Microchip MIC79110YML-TR.

Data Sheets:

8234fb526d1f0cad180ec79cbaa4a87b.pdf

The Micrel MIC79110 is a simple and accurate lithium ion battery charger. Featuring a built-in pass transistor, precision programmable current limiting (±5%), and precision voltage termination (±0.75% over temperature) all in a very small package, the MIC79110 packs full functionality into a small space. Other features of the MIC79110 include two independent end-of-charge indications, including a digital indication that is programmable with a resistor-to-ground and an analog current output that is proportional to the output current, allowing for monitoring of the actual charging current. Additional features include very low dropout (550mV over the temperature range), thermal shutdown, and reverse polarity protection. In the event the input voltage to the charger is disconnected, the MIC79110 also provides minimal reverse-current and reversed-battery protection. Available in both fixed 4.2V and adjustable outputs, the MIC79110 is offered in the leadless 10-pin 3mm x 3mm MLF® with an operating junction temperature range of -40°C to +125°C.

Input voltage range: 2.5V to 16V
High output voltage accuracy of ±0.75% over -5°C to +60°C
Current Limit ±5% accurate from -5°C <= Tj <= + 125°C
Programmable end-of-charge flag
Analog output proportional to output current
Adjustable and fixed 4.2V output
Low dropout voltage of 550mV at 700mA load, over temperature
1.2A output current
Excellent line and load regulation specifications
Reverse current and protection
Thermal shutdown and current limit protection
Tiny 10-pin 3mm x 3mm MLF®package
Junction temperature range: -40°C to +125°C

User Guide
