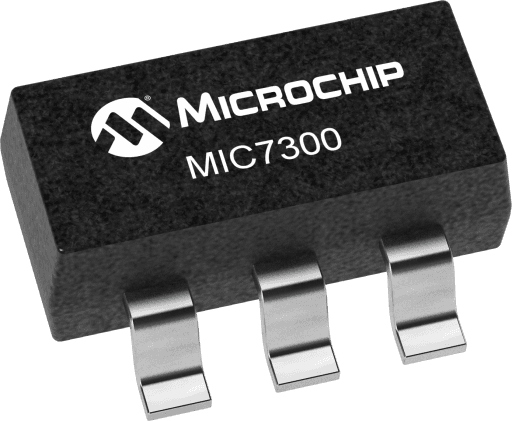

Microchip MIC7300YM5-TR

Manufacturer No:

MIC7300YM5-TR

Manufacturer:

Microchip

Package:

SC-74A, SOT-753

Description:

500kHz, Single Operational Amplifier

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC7300YM5-TR information

Microchip MIC7300YM5-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC7300YM5-TR.

Type
Parameter

CMRR Min (dB)
55

Enhanced EMI Protection
No

Gain Bandwidth Product kHz (kilohertz)
400

Iq Max (uA)
2800

Input Voltage Noise Density (nV/rt(Hz))
37

Iq Typical (µA)
1000

Operating Voltage Max V (volt)
10

Operating Voltage Min V (volt)
2.2

PM (deg)
40

PSRR Min (dB)
55

# Per Package
1

Slew Rate (V/µs)
0.5

Vos Max µV (microvolt)
9000

Download datasheets and manufacturer documentation for Microchip MIC7300YM5-TR.

The MIC7300 is a high-performance CMOS operational amplifier featuring rail-to-rail input and output with strong output drive capability. It is able to source and sink in excess of 80mA into large capacitive loads. The input common-mode range extends beyond the rails by 300mV, and the output voltage typically swings to within 150µV of both rails when driving a 100kΩ load. The amplifier operates from 2.2V to 10V and is fully specified at 2.2V, 3V, 5V, and 10V. Gain bandwidth and slew rate are 500kHz and 0.5V/µs, respectively. The MIC7300 is available in Micrel's IttyBitty® SOT-23-5 package for space-conscious circuits and in high-power MM8® 8-lead MSOP for improved heat dissipation in higher power applications.

Small footprint SOT-23-5 and power MSOP-8 packages
>80mA peak output sink and source with 5V supply
Drives large capacitive loads (6000pF with 10V supply)
Guaranteed 2.2V, 3V, 5V, and 10V performance
500kHz gain-bandwidth product
0.01% total harmonic distortion at 1kHz (10V, 2kΩ)
1mA typical power supply current at 5V
