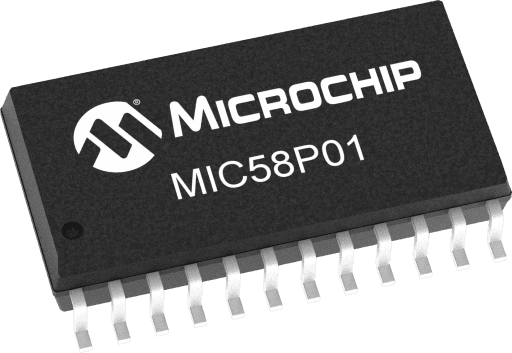

Microchip MIC58P01YV-TR

Manufacturer No:

MIC58P01YV-TR

Manufacturer:

Microchip

Package:

28-LCC (J-Lead)

Description:

8-Bit Parallel Input Protected Latched Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC58P01YV-TR information

Microchip MIC58P01YV-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC58P01YV-TR.

Type
Parameter

Type
Sink

Output Channels
8

Vout Operating (V) - Transient
80

Vout Operating (V) - Sustained
80

Iout (mA) per Channel
500

Output Structure
Darlington Open Collector

Input Structure
Parallel

Minimum Data Clock (MHz)
--

General Description
8-Bit SRs (Cascadable), Operable w/Split Supply (to -20V), 3.3MHz (min) Data@5V, Higher @12V, Low Power Logic - TTL/CMOS/PMOS/NMOS; Internal Pull Up/Dwn Res’s

Package
24/SOIC 300mil 28/PLCC

Download datasheets and manufacturer documentation for Microchip MIC58P01YV-TR.

Data Sheets:

dce60e288e693f9f04c17fd13fbca573.pdf

The MIC58P01 parallel-input latched driver is a high-voltage (80V), high-current (500mA) integrated circuit comprised of eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE functions. Similar to the MIC5801, additional protection circuitry supplied on this device includes thermal shutdown, under voltage lockout (UVLO), and overcurrent shutdown. The bipolar/CMOS combination provides an extremely low-power latch with maximum interface flexibility. The MIC58P01 has open-collector outputs capable of sinking 500mA and integral diodes for inductive load transient suppression with a minimum output breakdown voltage rating of 80V (50V sustaining). The drivers may be paralleled for higher load current capability. With a 5V logic supply, the MIC58P01 will typically operate at better than 5MHz. With a 12V logic supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS circuits. TTL circuits may require pull-up resistors. Each of these eight outputs has an independent overcurrent shutdown of 500mA. Upon current shutdown, the affected channel will turn OFF until VDD is cycled or the ENABLE/RESET pin is pulsed high. Current pulses less than 2µs will not activate current shutdown. Temperatures above 165°C will shut down all outputs. The UVLO circuit disables the outputs at low VDD; hysteresis of 0.5V is provided.

4.4MHz Minimum Data Input Rate
High-Voltage, High-Current Outputs
Per-Output Overcurrent Shutdown (500mA typical)
Undervoltage Lockout
Thermal Shutdown
Output Transient Protection Diodes
CMOS, PMOS, NMOS, and TTL Compatible Inputs
Internal Pull-Down Resistors
Low-Power CMOS Latches
