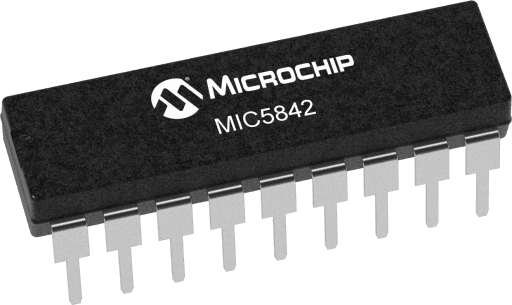

Microchip MIC5842YV-TR

Manufacturer No:

MIC5842YV-TR

Manufacturer:

Microchip

Package:

20-LCC (J-Lead)

Description:

8-Bit Serial-in Latched Driver, Diodes

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5842YV-TR information

Microchip MIC5842YV-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5842YV-TR.

Type
Parameter

Type
Sink

Output Channels
8

Vout Operating (V) - Transient
80

Vout Operating (V) - Sustained
50

Iout (mA) per Channel
500

Output Structure
Darlington Open Collector

Input Structure
Serial

Minimum Data Clock (MHz)
3.3

General Description
8-Bit SRs (Cascadable), Operable w/Split Supply (to -20V), 3.3MHz (min) Data@5V, Higher @12V, Low Power Logic - TTL/CMOS/PMOS/NMOS; Internal Pull Up/Dwn Res’s

Package
20/PLCC 18/SOIC 300mil 18/PDIP

Download datasheets and manufacturer documentation for Microchip MIC5842YV-TR.

Data Sheets:

d6d84c3f89d4bbe12519a3753abd96ab.pdf

Using BiCMOS technology, the MIC5841/5842 integrated circuits were fabricated to be used in a wide variety of peripheral power driver applications. The devices each have an eight-bit CMOS shift register, CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sink Darlington output drivers. These two devices differ only in maximum voltage ratings. The MIC5842 offers premium performance with a minimum output breakdown voltage rating of 80V (50V sustaining). The drivers can be operated with a split supply where the negative supply is down to -20V. The 500 mA outputs, with integral transient-suppression diodes, are suitable for use with lamps, relays, solenoids and other inductive loads. These devices have improved speed characteristics. With a 5V logic supply, they will typically operate faster than 5 MHz. With a 12V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS logic levels. TTL or DTL circuits may require the use of appropriate pull-up resistors. By using the serial data output, the drivers can be cascaded for interface applications requiring additional drive lines. The MIC5840 family is available in DIP, PLCC, and SOIC packages. Because of limitations on package power dissipation, the simultaneous operation of all drivers at maximum rated current might require a reduction in duty cycle. A copper-alloy lead frame provides for maximum package power dissipation.

3.3 MHz Minimum Data-Input Rate
CMOS, PMOS, NMOS, TTL Compatible
Internal Pull-Up/Pull-Down Resistors
Low-Power CMOS Logic and Latches
High-Voltage Current-Sink Outputs
Output Transient-Protection Diodes
Single or Split Supply Operation
