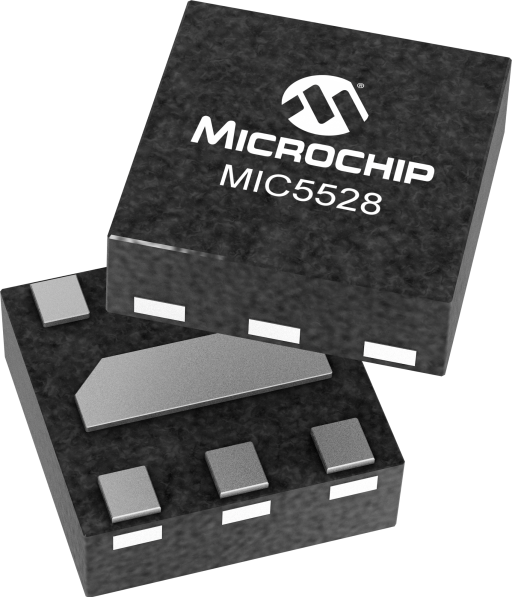

Microchip MIC5528-3.3YMX-TR

Manufacturer No:

MIC5528-3.3YMX-TR

Manufacturer:

Microchip

Package:

6-XFDFN Exposed Pad

Description:

Single, 500mA LDO w/ Auto Discharge \u0026 Internal Enable Pulldown

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5528-3.3YMX-TR information

Microchip MIC5528-3.3YMX-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5528-3.3YMX-TR.

Type
Parameter

VIN Min (V) V (volt)
2.5

VIN Max V (volt)
5.5

VOUT V (volt)
3.3

IOUT #1 Max mA (milliampere)
500

Rated IOUT Max mA (milliampere)
500

Quiescent Current µA (microampere)
38

Voltage Drop Typ (mV)
260

Accuracy (+/-) %
3

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5528-3.3YMX-TR.

Data Sheets:

7eb144bb50f042e1a57a36bd762b5241.pdf

The MIC5528 is a low-power, μCap, low dropout regulator designed for optimal performance in a very-small footprint. It is capable of sourcing up to 500mA of output current while only drawing 38μA of operating current. This high-performance LDO is a μCap design in a thermally enhanced 1.2mm x 1.2mm extra thin (0.4mm ht.) DFN package. It operates with small ceramic output capacitor for stability, thereby reducing required board space.

Ideal for battery-operated applications, the MIC5528 offers ±2% accuracy, extremely low dropout voltage (260mV @ 500mA), and can regulate output voltages down to 1.0V. Equipped with a TTL logic-compatible enable pin, the MIC5528 can be put into a zero-off-mode current state, drawing no current when disabled.

The MIC5528 is a μCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost for space-critical applications. The MIC5528 has an operating junction temperature range of -40°C to 125°C.

Input voltage range: 2.5V to 5.5V
Fixed output voltages down to 1.0V
±2% Room temperature accuracy
Low quiescent current: 38µA
Stable with 2.2µF ceramic output capacitors
Low dropout voltage: 260mV @ 500mA
Auto discharge and internal enable pulldown
Thermal-shutdown and current-limit protection
6-pin 1.2mm x 1.2mm extra thin DFN package
6-pin 1.2mm x 1.2mm thin DFN package
