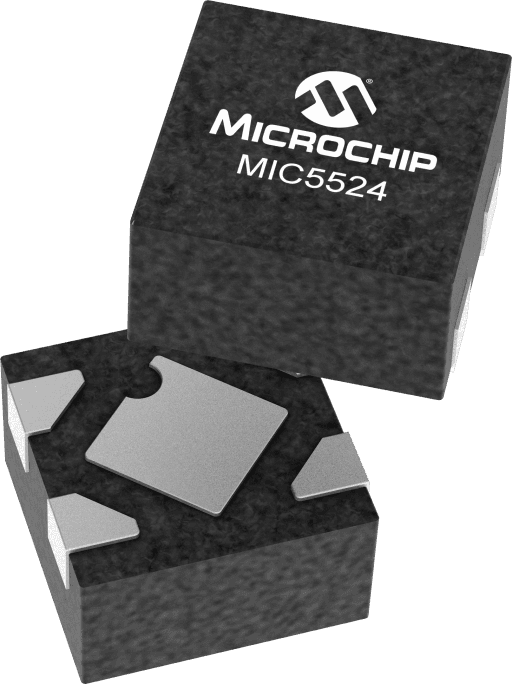

Microchip MIC5524-3.0YMT-TZ
Manufacturer No:
MIC5524-3.0YMT-TZ
Manufacturer:
Package:
4-UDFN Exposed Pad
Description:
Single High-Performance 500mA LDO
