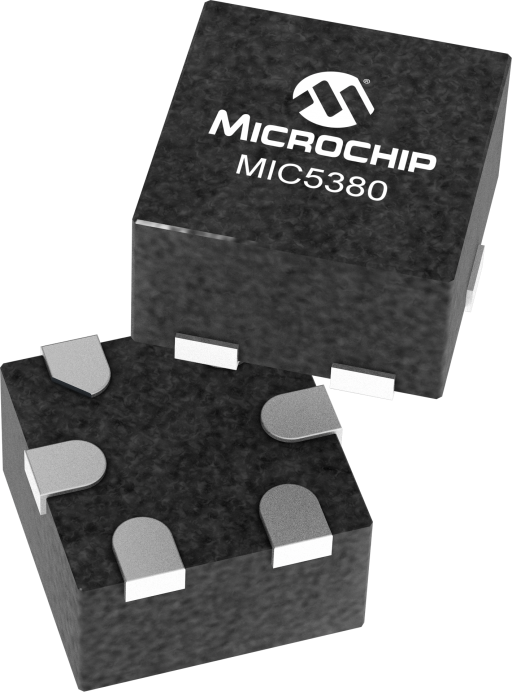

Microchip MIC5380-SSYFT-TR

Manufacturer No:

MIC5380-SSYFT-TR

Manufacturer:

Microchip

Package:

6-UFQFN, 6-TMLF®

Description:

Dual 150mA LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5380-SSYFT-TR information

Microchip MIC5380-SSYFT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5380-SSYFT-TR.

Type
Parameter

VIN Min (V) V (volt)
2.5

VIN Max V (volt)
5.5

VOUT V (volt)
1.8/1.2, 2.6/2.0, 2.7/2.7, 2.8/1.2, 2.8/1.8, 3.0/3.0, 3.3/3.3

IOUT #1 Max mA (milliampere)
150

IOUT #2 Max mA (milliampere)
150

Quiescent Current µA (microampere)
59

Voltage Drop Typ (mV)
155

Accuracy (+/-) %
3

Adjustable VOUT
No

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5380-SSYFT-TR.

Data Sheets:

ca1019cc14af8d2301cac7b32d2bfc96.pdf

The MIC5380/1 is an advanced dual LDO ideal for powering space constrained portable devices. Ideal for battery powered applications, the MIC5380/1 offers ±1% typical accuracy, low dropout voltage (155mV at 150mA) and low ground current. The MIC5380/1 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

The MIC5380/1 offers fast transient response and high PSRR while consuming minimal operating current. When the MIC5381 is disabled, an internal resistive load is automatically applied to the output to discharge the output capacitor.

2.5V to 5.5V input voltage range
150mA output current per LDO
High output accuracy ±1% typical
Low quiescent current 32µA per LDO
Stable with 0402 1µF ceramic output capacitors
Low dropout voltage: 155mV at 150mA
Output discharge circuit (MIC5381)
Independent enable pins
Thermal shutdown protection
Current limit protection
