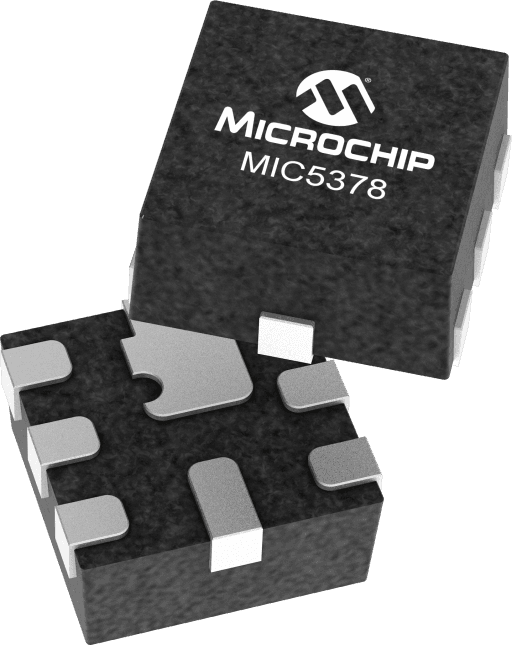

Microchip MIC5378YC5-TR

Manufacturer No:

MIC5378YC5-TR

Manufacturer:

Microchip

Package:

5-TSSOP, SC-70-5, SOT-353

Description:

Low Dropout Single 150mA LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5378YC5-TR information

Microchip MIC5378YC5-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5378YC5-TR.

Type
Parameter

VIN Min (V) V (volt)
2.5

VIN Max V (volt)
5.5

IOUT #1 Max mA (milliampere)
150

Rated IOUT Max mA (milliampere)
150

Quiescent Current µA (microampere)
29

Voltage Drop Typ (mV)
120

Accuracy (+/-) %
3

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5378YC5-TR.

Data Sheets:

30a63b96f78a771761b0e843a9c13f41.pdf

User Guide:

2587ee8eb5f705c6f8ec5234ec1d62b8.pdf

The MIC5375/6/7/8 is an advanced general purpose linear regulator offering low dropout in an ultra-small package. When the MIC5376/8 is disabled, an internal resistive load is automatically applied to the output to discharge the output capacitor. The MIC5375/6/7/8 is capable of sourcing 150mA output current with low dropout, making it an ideal solution for any portable electronic application.

Ideal for battery-powered applications, the MIC5375/6/7/8 offers 2% initial accuracy, low dropout voltage (120mV at 150mA), and low ground current (typically 29µA). The MIC5375/6/7/8 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

The MIC5375/6/7/8 has an operating junction temperature range of - 40°C to 125°C.

Low cost 5-pin SC-70 package
Low dropout voltage: 120mV at 150mA
Input voltage range: 2.5V to 5.5V
150mA guaranteed output current
Stable with 0402 ceramic capacitors as low as 1µF
Low quiescent current: 29µA
Excellent load and line transient response
Adjustable output: MIC5377/8
Output discharge circuit: MIC5376/8
±2% initial accuracy
Thermal shutdown and current limit protection

User Guide
