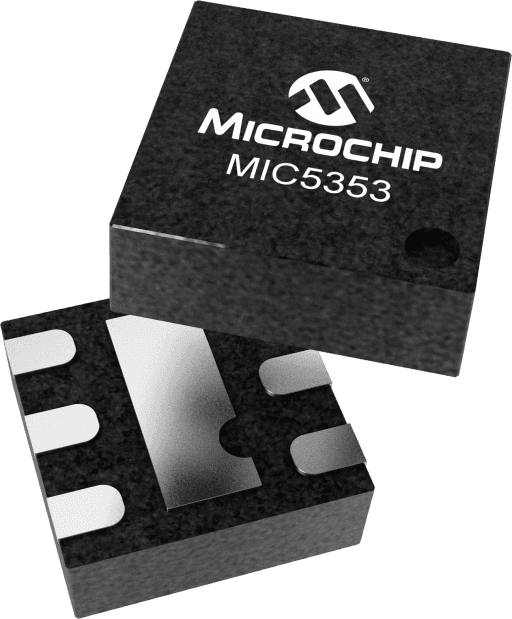

Microchip MIC5353-2.6YMT-TR

Manufacturer No:

MIC5353-2.6YMT-TR

Manufacturer:

Microchip

Package:

6-UFDFN Exposed Pad, 6-TMLF®

Description:

6Vin, Single 500mA ULDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5353-2.6YMT-TR information

Microchip MIC5353-2.6YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5353-2.6YMT-TR.

Type
Parameter

VIN Min (V) V (volt)
2.6

VIN Max V (volt)
6

VOUT V (volt)
1.8, 2.5, 2.6, 2.8, 3.0, 3.3

IOUT #1 Max mA (milliampere)
500

Rated IOUT Max mA (milliampere)
500

Quiescent Current µA (microampere)
90

Voltage Drop Typ (mV)
160

Accuracy (+/-) %
3

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
Yes

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC5353-2.6YMT-TR.

Data Sheets:

2988aefabb079b73d9c9e1f51e8dd3cc.pdf

The MIC5353 is a high performance, single-output, ultra-low LDO (ULDO™) regulator, offering a low total output noise of 30µV_rms. The MIC5353 is capable of sourcing 500mA output current and offers high PSRR and low output noise, making it an ideal solution for RF applications.

The MIC5353 provides 2% accuracy, extremely low dropout voltage (160mV at 500mA), and low ground current (typically 90µA) making it ideal for battery-operated applications. When disabled, the MIC5353 enters a zero off-mode current state, thereby drawing almost no current.

500mA guaranteed output current
Input voltage range: 2.6V to 6V
Ultra-low dropout voltage: 160mV at 500mA
±2% initial accuracy
Ultra-low output noise: 30µVrms
Low quiescent current: 90µA
Stable with ceramic output capacitors
35µs turn-on time
Thermal shutdown and current limit protection

User Guide
