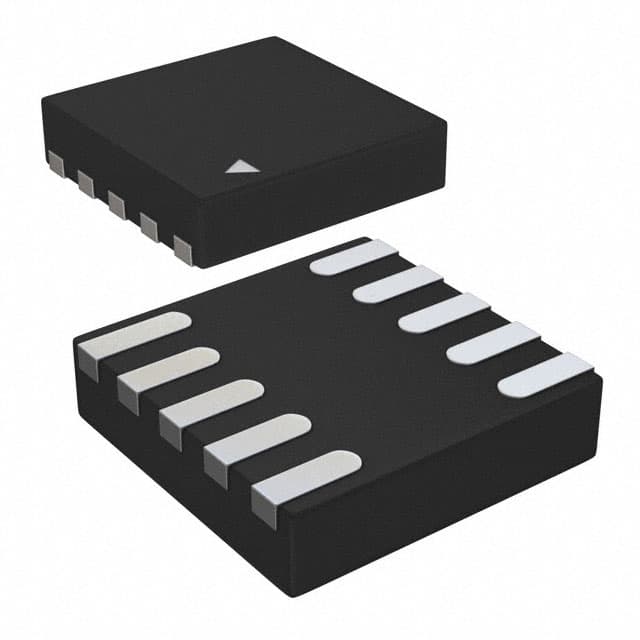

Microchip MIC5313-G4YMT-TR

Manufacturer No:

MIC5313-G4YMT-TR

Manufacturer:

Microchip

Package:

10-UFDFN, 10-TMLF®

Description:

Enable Fixed MIC5313 PMIC 10-UFDFN, 10-TMLF®

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC5313-G4YMT-TR information

Microchip MIC5313-G4YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5313-G4YMT-TR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-UFDFN, 10-TMLF®

Supplier Device Package
10-TMLF® (2x2)

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Published
2008

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Base Part Number
MIC5313

Voltage - Input (Max)
5.5V

Output Voltage
1.2V

Output Type
Fixed

Max Output Current
300mA

Output Configuration
Positive

Current - Output
300mA 300mA

Control Features
Enable

Voltage - Output (Min/Fixed)
1.2V 1.8V

Number of Regulators
2

Min Input Voltage
1.7V

Protection Features
Over Current, Over Temperature

Current - Quiescent (Iq)
12μA

Max Input Voltage
5.5V

PSRR
65dB ~ 40dB (1kHz ~ 20kHz)

Dropout Voltage
85mV

Min Output Voltage
1.2V

Min Current Limit
350mA

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Microchip MIC5313-G4YMT-TR.

Datasheets:

microchiptechnology-mic5313f4ymttr-datasheets-9317.pdf

ConflictMineralStatement:

microchip-dsc1123ci5400000-conflictmineralstatement-4089.pdf

MIC5313-G4YMT-TR Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 10-UFDFN, 10-TMLF® case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 300mA 300mA from this regulator IC. There is a dropout voltage of 10 volts on this IC regulator. For your information, the basic part number for this regulator IC is MIC5313. In order to meet the operation requirements, its maximal output current reaches 300mA. You should use the regulator IC when the temperature is below 125°C. It is not possible to operate the chip below -40°C operating temperature.

MIC5313-G4YMT-TR Features

85mV dropout voltage
The maximum operating temperature of -40°C

MIC5313-G4YMT-TR Applications

There are a lot of Microchip Technology
MIC5313-G4YMT-TR Linear Voltage Regulators applications.

Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
